RRM12120-B40 - Renesas Electronics

Description: The RRM12120 is a fully PMBus-enabled DC/DC step-down power supply capable of delivering up to 20A of current from a compact 10mm × 13mm × 5.9mm thermally enhanced BGA package.Operating across an input voltage range of 4.75V to 15V, the RRM12120 offers adjustable output voltages down to 0.45V and achieves up to 94% efficiency. The RRM12120 implements the proprietary Renesas digital synthetic current modulation scheme to achieve an industry-leading combination of transient response, ease of tuning, and effic

Download RRM12120-B40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RRM12120-B40 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

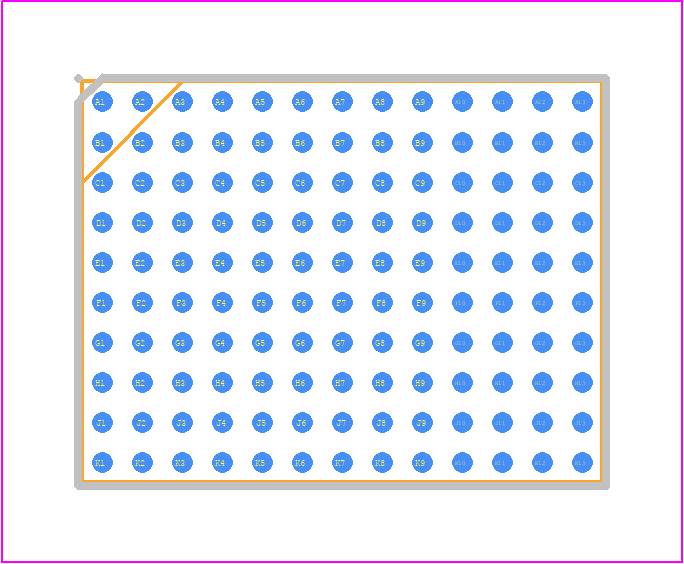

RRM12120-B40 - Renesas Electronics PCB footprint - BGA - BGA - 130 Ball BGA+POP
click to zoom
3D Models
RRM12120-B40 - Renesas Electronics - 3D model - BGA - 130 Ball BGA+POP
click to zoom

RRM12120-B40 Details

  • Manufacturer Part Number:

    RRM12120-B40

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-130

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B130

  • Length:

    13 mm

  • Number of Functions:

    1

  • Number of Terminals:

    130

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.45 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA130,10X13,39

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    5.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

RRM12120-B40 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1844) for the RRM12120-B40, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. Renesas recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the input voltage. The application note (AN1844) provides more detailed guidance on capacitor selection.
  • The enable pin (EN) has a maximum allowed voltage of 6V, which is not explicitly stated in the datasheet. Exceeding this voltage may damage the device.
  • To ensure a stable operating condition during startup, Renesas recommends a soft-start circuit or a ramp-up circuit to control the input voltage rise time. This helps prevent inrush currents and ensures the device operates within its specified limits.
  • While the datasheet specifies an operating temperature range of -40°C to 105°C, Renesas recommends operating the device within a range of -20°C to 85°C for optimal performance and reliability.
