RRP63175-NM0 - Renesas Electronics

Description: ▪ Accepts 3.3V/5V logic level PWM inputs ▪ 7.2A source and 5.3A sink driver for GaN/MOSFET ▪ Separately adjusts turn-on and turn-off speed ▪ Supports positive, negative PWM or EN input logic ▪ Fast propagation delay and matching: 5ns typical delay ▪ 7ns minimum input pulse width ▪ 4ns typical rise and fall time ▪ 5V power supply ▪ VDD undervoltage lockout (UVLO) and over-temperature protection (OTP) ▪ Small package with low parasitic inductance supporting up to 30MHz switching frequency applica

Download RRP63175-NM0 Model

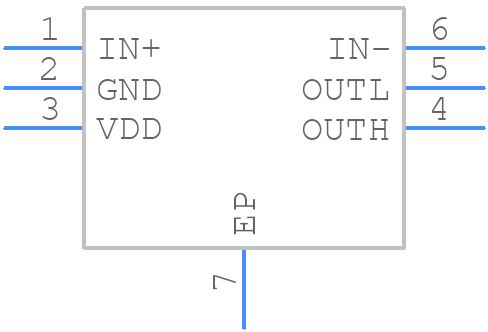

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RRP63175-NM0 - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 6LD SC-TDFN
click to zoom
3D Models
RRP63175-NM0 - Renesas Electronics  - 3D model - Small Outline No-lead - 6LD SC-TDFN
click to zoom

RRP63175-NM0 Details

  • Manufacturer Part Number:

    RRP63175-NM0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    7.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.005 µs

  • Turn-on Time:

    0.005 µs

  • Width:

    2 mm
