RS-1205D - RECOM Power

Description: Recom 2W Isolated DC-DC Converter, Vin 9 → 18 V dc, Vout ±5V dc, I/O isolation 500V ac

Download RS-1205D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

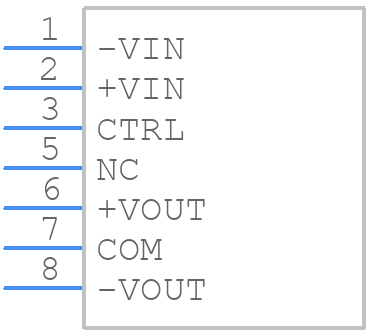

Symbol
RS-1205D - RECOM Power - PCB symbol
click to zoom
PCB Footprints
RS-1205D - RECOM Power PCB footprint - Other - Other - RS-1205D-2
click to zoom
3D Models
RS-1205D - RECOM Power - 3D model - Other - RS-1205D-2
click to zoom

RS-1205D Details

  • Manufacturer Part Number:

    RS-1205D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    SMA,

  • Pin Count:

    8/7

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Additional Feature:

    ADDITIONAL -5 VOLT OUTPUT ALSO AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSMA-T7

  • Length:

    21.8 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.35 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

RS-1205D Frequently Asked Questions (FAQs)

  • RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
  • Yes, the RS-1205D is designed to withstand high-vibration environments. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure the module is securely attached to the PCB. Additionally, the module's connectors should be securely fastened to prevent damage or disconnection.
  • The maximum allowed capacitance for the output filter capacitor is 1000uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • The RS-1205D is designed to operate in a dry environment with a relative humidity of up to 60%. Operating the module in a humid or wet environment may cause damage or corrosion. If operation in a humid environment is necessary, consider using conformal coating or potting to protect the module.
  • The recommended input fuse rating is 2A slow-blow or 1A fast-acting fuse. This is to protect the module from input overcurrent conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RS-1205D Overview

Use the download button to access the RS-1205D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS-12, or try a keyword search, such as Power Supply Modules
