RS-2415D/H3 footprint, schematic symbol and 3D model by RECOM Power

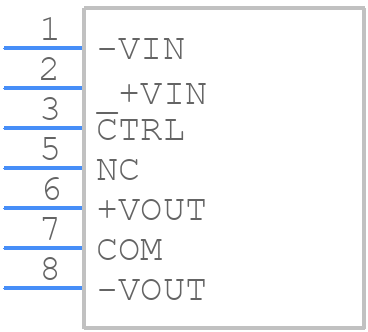

Symbol

click to zoom

PCB Footprints

RS-2415D/H3 - RECOM Power PCB footprint - Other - Other - RS-2415D/H3-1

click to zoom

3D Models

RS-2415D/H3 - RECOM Power - 3D model - Other - RS-2415D/H3-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RS-2415D/H3
Part Number RS-2415D/H3
Manufacturer RECOM Power
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - RS-2415D/H3-1
Released Date Sep 20, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RS-2415D/H3 Details

Manufacturer Part Number:
RS-2415D/H3
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Package Description:
SMA,
Pin Count:
8/7
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
6
Additional Feature:
ADDITIONAL -15 VOLT OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XSMA-T7
Length:
21.8 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
7
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15.3 V
Output Voltage-Min:
14.7 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
11.35 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
2 W
Trim/Adjustable Output:
NO
Width:
9.2 mm

RS-2415D/H3 Frequently Asked Questions (FAQs)

RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RS-2415D/H3 is designed to withstand high-vibration environments. However, it's recommended to follow the recommended mounting and screw torque specifications to ensure the module is securely fastened to the PCB or chassis.
The maximum capacitance load that can be connected to the output of the RS-2415D/H3 is 10,000 uF. Exceeding this value may cause instability or oscillation in the output voltage.
The RS-2415D/H3 is designed to operate in a dry environment with a relative humidity of up to 60%. Operating the module in a humid or wet environment may affect its reliability and lifespan. If operation in a humid environment is required, it's recommended to use conformal coating or other environmental protection measures.
The recommended input fuse rating for the RS-2415D/H3 is 5A slow-blow or 3A fast-acting fuse. This is to protect the module from input overvoltage and overcurrent conditions.

Trust Checks

Community Provided

System Verified

Community Approved

RS-2415D/H3 Overview

Use the download button to access the RS-2415D/H3 schematic symbol, PCB footprint, and 3D model.
