The datasheet doesn't provide specific PCB layout recommendations, but it's essential to ensure good thermal conductivity by using a thermal pad, vias, and a sufficient copper area around the component. A 2-3 layer PCB with a solid ground plane is recommended.
The datasheet doesn't specify a power-up sequence, but as a general rule, it's recommended to power up the VIN pin first, followed by the EN pin. This ensures the internal voltage regulator is stable before enabling the output.
The datasheet doesn't provide a specific maximum capacitance value, but as a general guideline, it's recommended to keep the output capacitance below 10uF to avoid stability issues. Larger capacitance values may require additional stabilization components.
The datasheet provides a formula for calculating the output voltage ripple (ΔVout) based on the input voltage, output current, and inductor value. However, it's recommended to use simulation tools or consult with an experienced engineer to ensure accurate calculations.
The datasheet doesn't specify a particular capacitor type or value, but a general guideline is to use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 1uF to 10uF, depending on the input voltage and frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RS0108YQ20 Overview

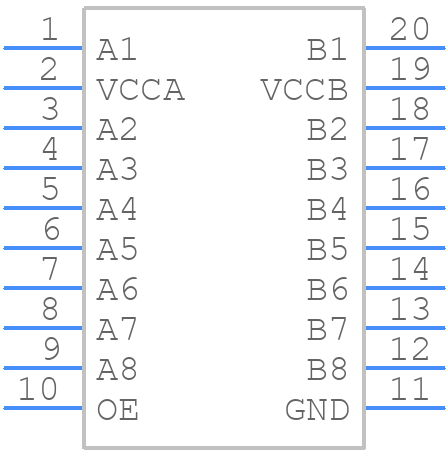

Use the download button to access the RS0108YQ20 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS010,
or try a keyword search, such as Level Translators
