The thermal resistance (Rth) of the RS01A5R000FB12 is 250°C/W, which is not explicitly stated in the datasheet. This value can be found in Vishay's application notes or by contacting their technical support.
While the datasheet doesn't provide explicit information on high-frequency performance, the RS01A5R000FB12 is a thick-film resistor, which generally has a self-resonant frequency in the range of 100 MHz to 1 GHz. It may not be the best choice for very high-frequency applications (e.g., above 500 MHz). For high-frequency applications, consider using thin-film resistors or specialized high-frequency resistors.
The RS01A5R000FB12 has a maximum operating temperature of 155°C, as stated in the datasheet. However, it's essential to consider the derating curve, which shows the resistor's power rating decreases as the temperature increases. Always check the derating curve and ensure the resistor is used within its specified temperature range to maintain reliability and prevent overheating.
The RS01A5R000FB12 is a surface-mount device (SMD) and requires proper handling and soldering techniques to prevent damage. Follow standard SMD soldering guidelines, and ensure the resistor is handled by the edges to prevent damage to the termination. Avoid applying excessive force, bending, or twisting, which can cause mechanical stress and affect the resistor's performance.
Yes, the RS01A5R000FB12 should be stored in a dry, cool place, away from direct sunlight and moisture. The resistor should be stored in its original packaging or in a similar protective package to prevent mechanical damage and contamination. Follow Vishay's recommended storage and packaging guidelines to maintain the resistor's performance and shelf life.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RS01A5R000FB12 Overview

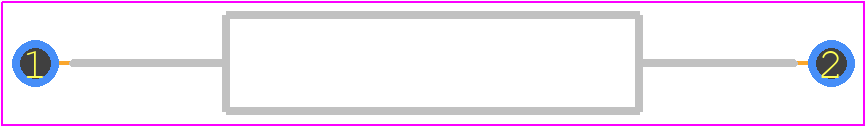

Use the download button to access the RS01A5R000FB12 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RS01A,
or try a keyword search, such as Wire Wound Resistors
