- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RS16
- Part Number RS16
- Manufacturer ITW MCMURDO
- Pin Count 8
- Part Category Connector
- Package Category Other
- Footprint Name Other - RS16
- Released Date Nov 11, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RS16 Details
-
Manufacturer Part Number:
RS16
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
ITW McMurdo Connectors
-
Additional Feature:
POLARIZED
-
Body/Shell Style:
SOCKET
-
Connector Type:
RACK AND PANEL CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Gender:
FEMALE
RS16 Frequently Asked Questions (FAQs)
-
The recommended torque value for the RS16 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks, and 15-18 in-lbs (1.7-2.0 Nm) for the nut and bolt assembly.
-
Yes, the RS16 connector is designed to withstand high-vibration environments. It has a ruggedized design and a secure locking mechanism that ensures reliable connections even in harsh conditions.
-
Yes, the RS16 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels (up to 95% RH). It is also resistant to salt spray, fuel, and other corrosive substances.
-
Yes, the RS16 connector is designed to accommodate shielded cables. The connector's backshell provides a 360-degree shield termination, ensuring effective EMI shielding and protection.
-
The RS16 connector can accommodate cables with a maximum diameter of 0.375 inches (9.5 mm) and a maximum wire size of 16 AWG.
Trust Checks
Expert Contribution
System Verified
Community Approved
RS16 Overview

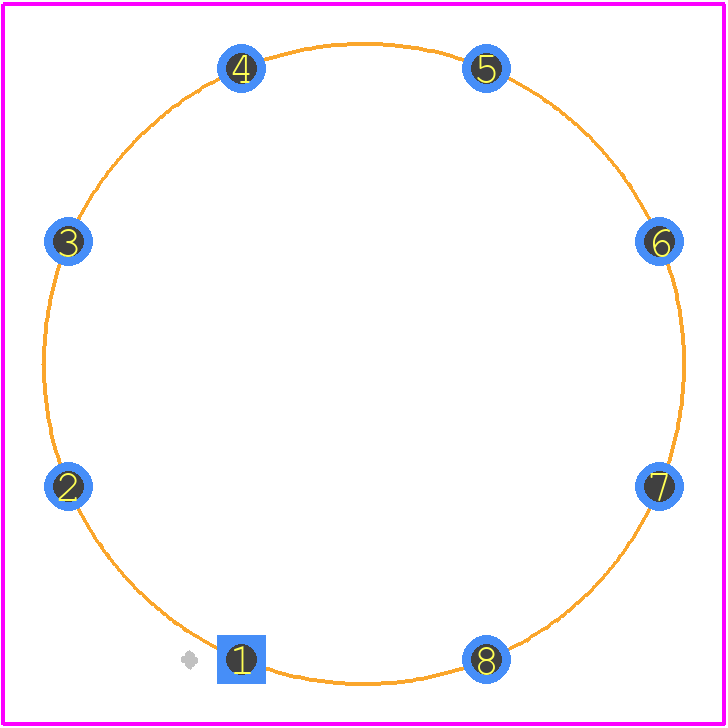

Use the download button to access the RS16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Multiway Rack and Panel Connectors
