RS1G150MNTB - ROHM Semiconductor

Description: Nch Power MOSFET, VDSS 40V, RDS(on)(Max.) 10.6mΩ, ID ±43A, PD 25W HSOP8

Download RS1G150MNTB Model

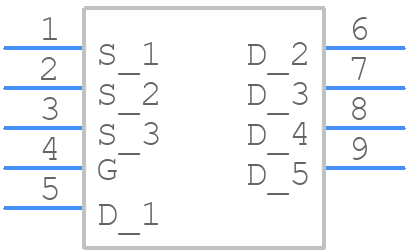

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

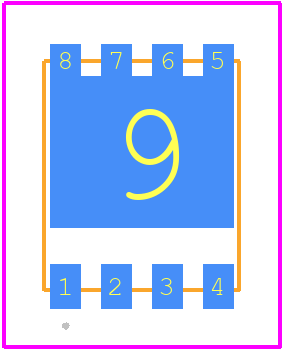

RS1G150MNTB - ROHM Semiconductor PCB footprint - Other - Other - RS1G150MNTB
click to zoom
3D Models
RS1G150MNTB - ROHM Semiconductor  - 3D model - Other - RS1G150MNTB
click to zoom

RS1G150MNTB Details

  • Manufacturer Part Number:

    RS1G150MNTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HSOP-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    15 A

  • Drain-source On Resistance-Max:

    0.0133 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    3 W

  • Pulsed Drain Current-Max (IDM):

    60 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RS1G150MNTB Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC, and a 2-layer or 4-layer PCB with a thermal relief pattern is suggested to improve heat dissipation.
  • Use a capacitor with a low ESR (Equivalent Series Resistance) and ensure the capacitor is placed close to the IC to minimize parasitic inductance.
  • A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended for input decoupling, placed as close to the IC as possible.
  • Use a voltage supervisor or a power-on reset circuit to monitor the input voltage and reset the IC during abnormal voltage conditions.
  • The maximum power dissipation is dependent on the ambient temperature and PCB design. A thermal analysis or simulation is recommended to determine the maximum allowable power dissipation.
