RS1G180MNTB - ROHM Semiconductor

Description: Nch 40V 57A Power MOSFET, VDSS 40V, RDS(on)(Max.) 7.0mΩ, ID ±57A, PD 30W,HSOP8.

Download RS1G180MNTB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

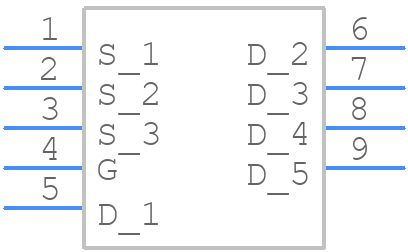

RS1G180MNTB - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

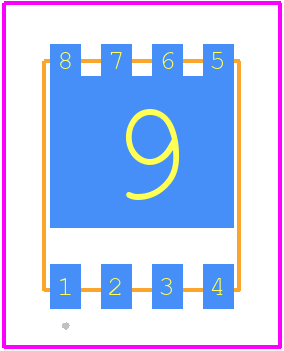

RS1G180MNTB - ROHM Semiconductor PCB footprint - Other - Other - RS1G180MNTB-2
click to zoom
3D Models
RS1G180MNTB - ROHM Semiconductor - 3D model - Other - RS1G180MNTB-2
click to zoom

RS1G180MNTB Details

  • Manufacturer Part Number:

    RS1G180MNTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HSOP-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    18 A

  • Drain-source On Resistance-Max:

    0.0092 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    3 W

  • Pulsed Drain Current-Max (IDM):

    72 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RS1G180MNTB Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended temperature range (Ta = -40°C to 150°C). Use a heat sink or thermal interface material to maintain a safe junction temperature (Tj).
  • The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage.
  • Handle the device by the body or use an anti-static wrist strap. Use an ESD-protected workstation and follow proper ESD handling procedures to prevent damage.
  • A gate resistor value between 10Ω to 100Ω is recommended, depending on the specific application and switching frequency. A lower value can improve switching speed, but may increase power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RS1G180MNTB Overview

Use the download button to access the RS1G180MNTB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS1G1, or try a keyword search, such as Power Field-Effect Transistors
