RS1G260MNTB - ROHM Semiconductor

Description: Nch 40V 80A Power MOSFET, VDSS 40V, RDS(on)(Max.) 3.3mΩ, ID ±80A, PD 35W, HSOP8.

Download RS1G260MNTB Model

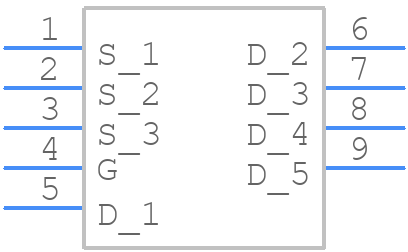

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

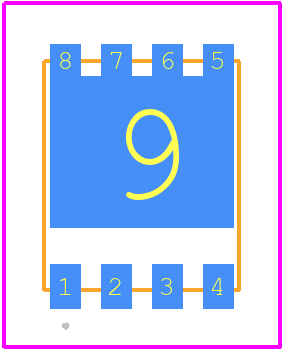

PCB Footprints
RS1G260MNTB - ROHM Semiconductor PCB footprint - Other - Other - RS1G260MNTB
click to zoom
3D Models
RS1G260MNTB - ROHM Semiconductor  - 3D model - Other - RS1G260MNTB
click to zoom

RS1G260MNTB Details

  • Manufacturer Part Number:

    RS1G260MNTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HSOP-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    26 A

  • Drain-source On Resistance-Max:

    0.0044 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    3 W

  • Pulsed Drain Current-Max (IDM):

    104 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RS1G260MNTB Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal management system to keep the junction temperature below 125°C. Also, follow the recommended derating curves for voltage and current.
  • ROHM recommends a gate drive voltage of 10-15V and a current of 1-2A to ensure fast switching times and low losses. The gate drive circuit should be designed to provide a low impedance path to the gate terminal.
  • Use a TVS diode or a zener diode to clamp the voltage across the device. Implement overcurrent protection using a sense resistor and a comparator or a dedicated overcurrent protection IC. Also, ensure that the device is operated within the recommended voltage and current ratings.
  • Store the devices in their original packaging or in a dry, ESD-protected environment. Avoid exposing the devices to moisture, extreme temperatures, or physical stress. Handle the devices by the body or the pins, avoiding touching the die or the wire bonds.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RS1G260MNTB Overview

Use the download button to access the RS1G260MNTB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS1G2, or try a keyword search, such as Power Field-Effect Transistors
