RS206L - Rectron

RS206L Details

• Manufacturer Part Number:

  RS206L

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

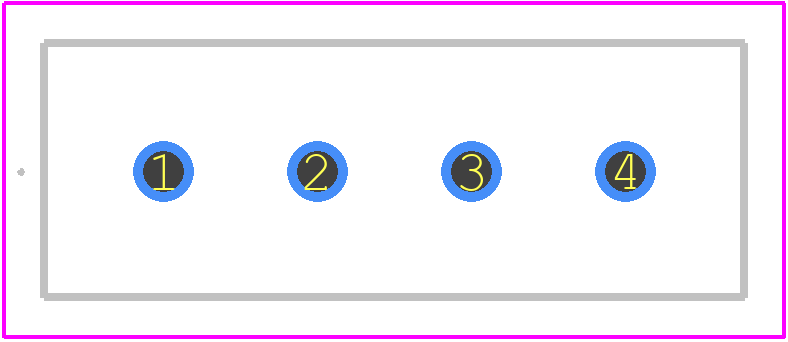

• Package Description:

  ROHS COMPLIANT, PLASTIC, RS-2L, 4 PIN

• Pin Count:

  4

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Rectron Semiconductor

• YTEOL:

  0

• Breakdown Voltage-Min:

  800 V

• Configuration:

  BRIDGE, 4 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  BRIDGE RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.1 V

• JESD-30 Code:

  R-PSIP-W4

• JESD-609 Code:

  e3

• Non-rep Pk Forward Current-Max:

  50 A

• Number of Elements:

  4

• Number of Phases:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  2 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Reference Standard:

  UL RECOGNIZED

• Rep Pk Reverse Voltage-Max:

  800 V

• Reverse Current-Max:

  0.00001 µA

• Surface Mount:

  NO

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  WIRE

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  10
