The recommended PCB layout for the RS2105XN involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
To ensure proper thermal management, the RS2105XN should be mounted on a heat sink with a thermal conductivity of at least 1 W/m-K. The heat sink should be attached using a thermal interface material with a thermal conductivity of at least 5 W/m-K. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
The maximum allowed voltage on the enable pin (EN) of the RS2105XN is 6V. Exceeding this voltage may damage the device. It is recommended to use a voltage limiter or a voltage divider to ensure the enable pin voltage does not exceed 6V.
The RS2105XN is designed for general-purpose applications and is not intended for high-reliability or high-temperature applications. For such applications, a more specialized device with a higher temperature rating and more stringent quality control should be used.
To troubleshoot issues with the RS2105XN, start by checking the input voltage, output current, and temperature. Verify that the device is properly mounted on a heat sink and that the thermal interface material is properly applied. Check for any signs of physical damage or contamination. If the issue persists, consult the datasheet and application notes for further guidance or contact RUNIC technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RS2105XN Overview

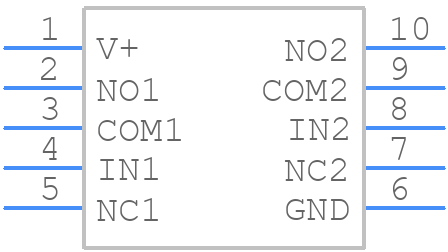

Use the download button to access the RS2105XN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS210,
or try a keyword search, such as Multiplexers or Switches
