The recommended PCB layout for the RS2251XS16 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is also recommended.
To ensure proper thermal management, it's essential to provide adequate heat dissipation for the RS2251XS16. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. The thermal pad on the bottom of the device should be connected to a solid ground plane or a thermal via to dissipate heat effectively.
The RS2251XS16 has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
The RS2251XS16 is designed to operate in a variety of environments, including those with high vibration. However, it's essential to ensure the device is properly secured to the PCB and that the PCB is designed to withstand the vibration. Additionally, the device's thermal management should be considered to prevent overheating.
To troubleshoot issues with the RS2251XS16, start by verifying the power supply voltage, checking for proper PCB layout and thermal management, and ensuring the device is properly soldered. Use oscilloscopes and logic analyzers to debug the device's input and output signals. Consult the datasheet and application notes for specific troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RS2251XS16 Overview

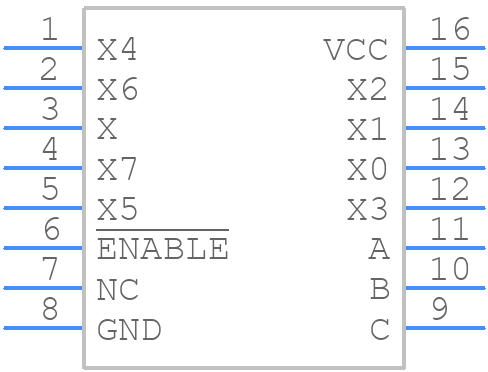

Use the download button to access the RS2251XS16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS225,
or try a keyword search, such as Multiplexers or Switches
