RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the RS3-2405DZ/H3 is designed to withstand high vibrations. It has been tested to meet the IEC 60068-2-6 standard for vibration resistance, which includes sinusoidal vibration testing at 10-2000 Hz, 2G amplitude, and 3 axes.
To ensure reliability in high-temperature environments, RECOM recommends derating the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensuring good airflow and using a heat sink can help to reduce the module's operating temperature.
RECOM recommends using a low-ESR input capacitor with a value of 10-22 μF, X7R or X5R dielectric, and a voltage rating of at least 50V. The capacitor should be placed as close as possible to the module's input pins.
Yes, the RS3-2405DZ/H3 can be used in a redundant or parallel configuration to achieve higher power output or redundancy. However, RECOM recommends consulting with their application engineers to ensure proper design and implementation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RS3-2405DZ/H3 Overview

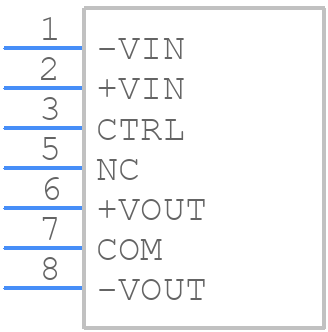

Use the download button to access the RS3-2405DZ/H3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS3-2,
or try a keyword search, such as Power Supply Modules
