RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
To ensure reliability in high-temperature environments, RECOM recommends derating the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensuring good airflow and heat dissipation, as well as using a suitable thermal interface material, can help to reduce the module's operating temperature.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22uF, 50V or higher, as close to the module's input pins as possible. This helps to filter out input noise and ensure stable operation.
Yes, the RS6-0515D can be used in a redundant or parallel configuration, but RECOM recommends consulting with their application engineers to ensure proper design and implementation. Additionally, the modules should be synchronized to prevent oscillations and ensure stable operation.
The RS6-0515D has a built-in undervoltage lockout (UVLO) circuit that shuts down the module when the input voltage falls below 3.5V. The module will automatically restart when the input voltage recovers to above 4.5V.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RS6-0515D Overview

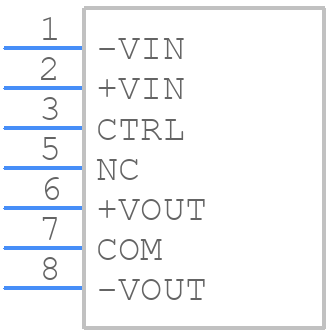

Use the download button to access the RS6-0515D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS6-0,
or try a keyword search, such as Power Supply Modules
