RS6-2412S - RECOM Power

Description: Recom Through Hole 6W Isolated DC-DC Converter, Vin 18 → 36 V dc

Download RS6-2412S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

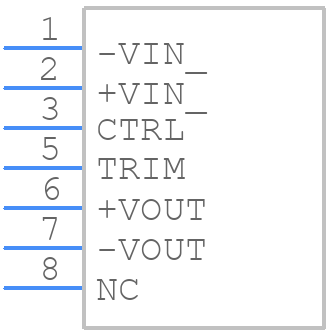

Symbol
RS6-2412S - RECOM Power - PCB symbol
click to zoom
PCB Footprints
RS6-2412S - RECOM Power PCB footprint - Other - Other - RS6-2412S-1
click to zoom
3D Models
RS6-2412S - RECOM Power - 3D model - Other - RS6-2412S-1
click to zoom

RS6-2412S Details

  • Manufacturer Part Number:

    RS6-2412S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMA,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-09-14

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSMA-T7

  • JESD-609 Code:

    e3

  • Length:

    21.8 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    11.04 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    11.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    YES

  • Width:

    9.2 mm

RS6-2412S Frequently Asked Questions (FAQs)

  • RECOM recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good heat dissipation.
  • To ensure reliable start-up in cold temperatures, RECOM recommends adding a soft-start circuit or a voltage supervisor to the input voltage to prevent inrush currents and ensure a stable output voltage.
  • The RS6-2412S can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillations in the output voltage.
  • While the RS6-2412S is rated for operation up to 85°C, RECOM recommends derating the output power by 1.5% per degree above 70°C to ensure reliable operation in high-temperature environments.
  • To troubleshoot output voltage deviations or oscillations, check the input voltage, output load, and PCB layout for any anomalies or noise sources. Ensure that the output capacitor is properly sized and that the feedback loop is properly compensated.
