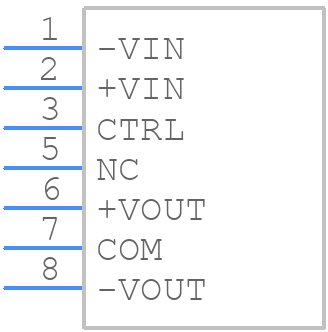

RS6-2415D - RECOM Power

RS6-2415D Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  The recommended PCB layout for optimal thermal performance involves placing the module on a multi-layer PCB with a large copper area for heat dissipation. The copper area should be connected to a solid ground plane to ensure good heat conduction.
• How do I ensure reliable start-up of the module?
  To ensure reliable start-up of the module, make sure to follow the recommended start-up sequence: apply the input voltage, then the enable signal. Also, ensure that the input voltage is within the specified range and the enable signal is high during start-up.
• What is the maximum capacitive load that the module can drive?
  The RS6-2415D can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillation in the output voltage.
• Can I use the module in a high-temperature environment?
  While the module is rated for operation up to 85°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation. Additionally, ensure good airflow and heat dissipation to prevent overheating.
• How do I protect the module from input voltage transients?
  To protect the module from input voltage transients, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This will help absorb voltage spikes and prevent damage to the module.
