RS6-2415S - RECOM Power

Description: Recom Through Hole 6W Isolated DC-DC Converter, Vin 18 → 36 V dc

Download RS6-2415S Model

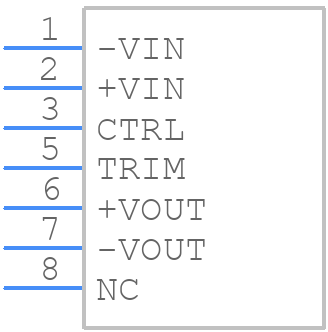

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RS6-2415S - RECOM Power PCB footprint - Other - Other - RS6-2415S-1
click to zoom
3D Models
RS6-2415S - RECOM Power  - 3D model - Other - RS6-2415S-1
click to zoom

RS6-2415S Details

  • Manufacturer Part Number:

    RS6-2415S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMA,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-09-14

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSMA-T7

  • JESD-609 Code:

    e3

  • Length:

    21.8 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    13.8 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    11.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    YES

  • Width:

    9.2 mm

RS6-2415S Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the module on a multi-layer PCB with a large copper area for heat dissipation. The copper area should be connected to a solid ground plane to ensure good heat conduction.
  • To ensure reliable start-up of the module, make sure to follow the recommended start-up sequence: apply the input voltage, then the enable signal. Also, ensure that the input voltage is within the specified range and the enable signal is properly driven.
  • The maximum capacitive load that can be driven by the module is 10uF. Exceeding this value may cause instability or oscillation.
  • To protect the module from overvoltage and undervoltage conditions, use a voltage supervisor or a voltage monitor IC to monitor the input voltage and shut down the module if the voltage exceeds the specified range.
  • The recommended input filter configuration to minimize EMI involves using a pi-filter (C-L-C) or a common-mode choke in combination with a capacitor to filter out high-frequency noise.
