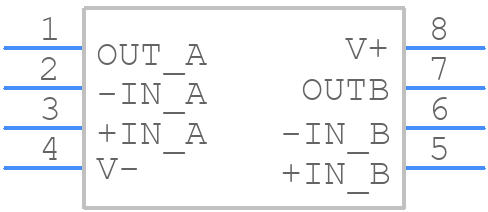

RS622XM - RUNIC

RS622XM Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for optimal performance?
  RUNIC recommends a 4-layer PCB with a dedicated ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the power planes. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal interface material.
• How do I ensure reliable communication between the RS622XM and my microcontroller?
  To ensure reliable communication, use a reliable clock source, implement proper signal termination, and ensure that the microcontroller's UART or SPI interface is configured correctly. Additionally, consider using a FIFO buffer to handle data transmission and reception.
• What are the limitations of the RS622XM's built-in error correction and detection mechanisms?
  The RS622XM's built-in error correction and detection mechanisms can detect and correct single-bit errors, but may not detect or correct multi-bit errors or errors caused by noise or interference. Additional error correction mechanisms, such as checksums or CRCs, may be necessary for critical applications.
• Can I use the RS622XM in a harsh environment, such as high temperature or high vibration applications?
  The RS622XM is rated for operation up to 85°C, but may require additional thermal management or derating for higher temperatures. For high vibration applications, consider using a ruggedized PCB design and securing the device with a suitable mounting mechanism.
• How do I troubleshoot issues with the RS622XM, such as data transmission errors or device malfunction?
  Use a logic analyzer or oscilloscope to monitor the device's signals and identify the source of the issue. Check the device's configuration and settings, and consult the datasheet and application notes for troubleshooting guidance. If necessary, contact RUNIC's technical support for further assistance.
