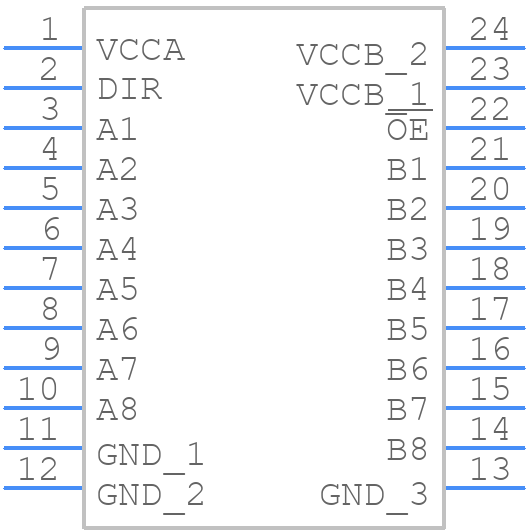

RS8T245YTSS24 - RUNIC

RS8T245YTSS24 Details

• Manufacturer Part Number:

  RS8T245YTSS24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• Package Description:

  TSSOP-24

• HTS Code:

  8542.39.00.60

• Manufacturer:

  RUNIC

• Control Type:

  COMMON CONTROL

• Count Direction:

  BIDIRECTIONAL

• Family:

  8T

• JESD-30 Code:

  R-PDSO-G24

• Length:

  7.8 mm

• Logic IC Type:

  BUS TRANSCEIVER

• Max I(ol):

  0.032 A

• Moisture Sensitivity Level:

  3

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR, 13 INCH

• Power Supply Current-Max (ICC):

  0.025 mA

• Prop. Delay@Nom-Sup:

  24.6 ns

• Propagation Delay (tpd):

  24.6 ns

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.65 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
