RSDW20UW-05 - Mean Well

Description: Isolated DC/DC Converters 8.5-160Vin 5V 4A 20W 2x1 DIP Iso

Download RSDW20UW-05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RSDW20UW-05 - Mean Well - PCB symbol
click to zoom
PCB Footprints

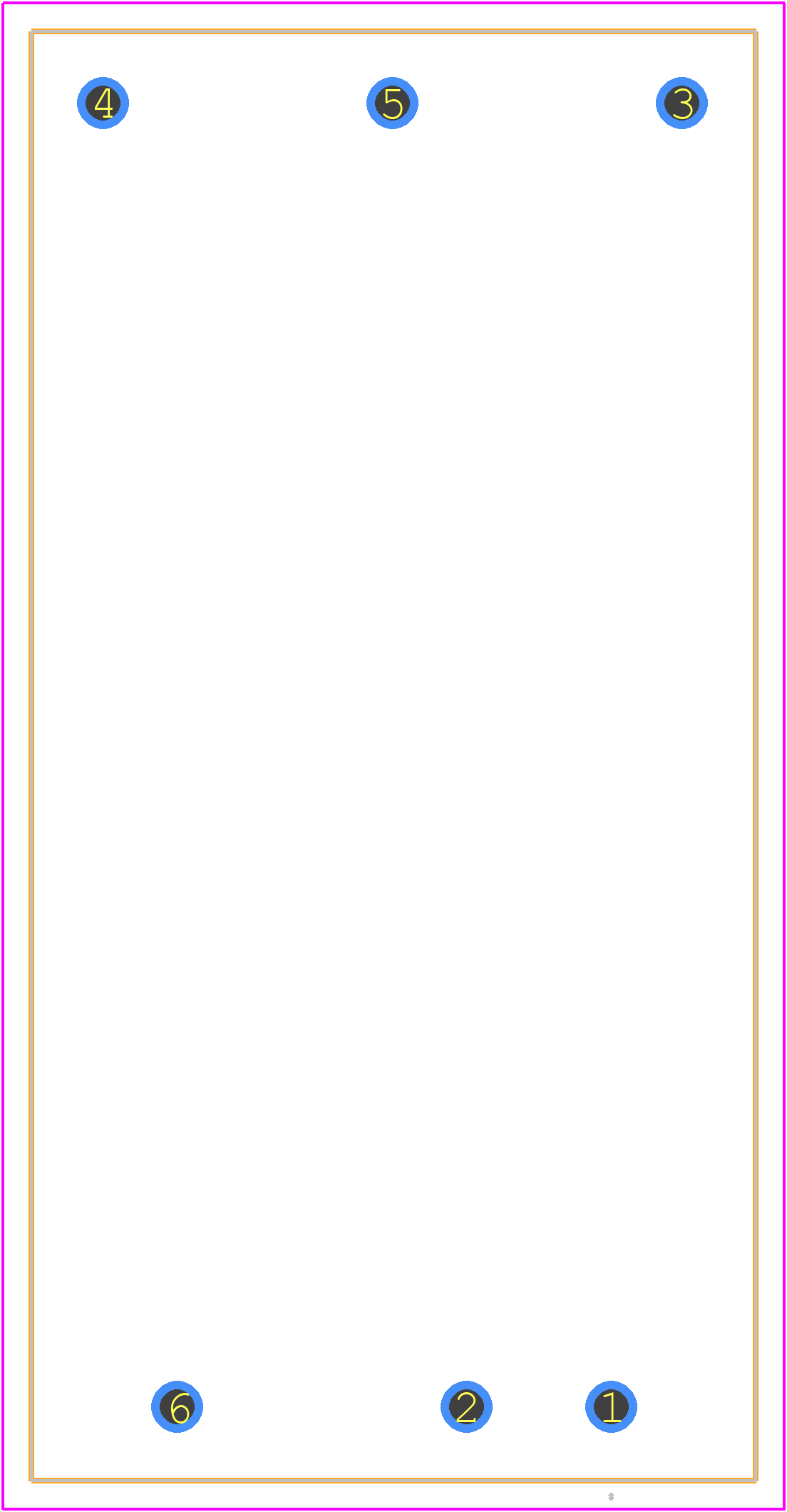

RSDW20UW-05 - Mean Well PCB footprint - Other - Other - RSDW20UW-05-1
click to zoom
3D Models
RSDW20UW-05 - Mean Well - 3D model - Other - RSDW20UW-05-1
click to zoom

RSDW20UW-05 Details

  • Manufacturer Part Number:

    RSDW20UW-05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mean Well

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    260

RSDW20UW-05 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the RSDW20UW-05 is -20°C to 60°C, with a derating of 2.5% per °C above 40°C.
  • Yes, the RSDW20UW-05 is designed to operate in humid environments, but it's recommended to keep the relative humidity below 90% to prevent condensation.
  • The minimum load requirement for the RSDW20UW-05 is 20% of the maximum rated output power, which is 4W in this case.
  • No, it's not recommended to parallel multiple RSDW20UW-05 units as it may cause instability and affect the reliability of the power supply.
  • The MTBF of the RSDW20UW-05 is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RSDW20UW-05 Overview

Use the download button to access the RSDW20UW-05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RSDW2, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
