RSDW60F-12 - Mean Well

Description: Isolated DC/DC Converters 9-36Vin 12Vout 5A 60W 2x1 Iso

Download RSDW60F-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RSDW60F-12 - Mean Well - PCB symbol
click to zoom
PCB Footprints

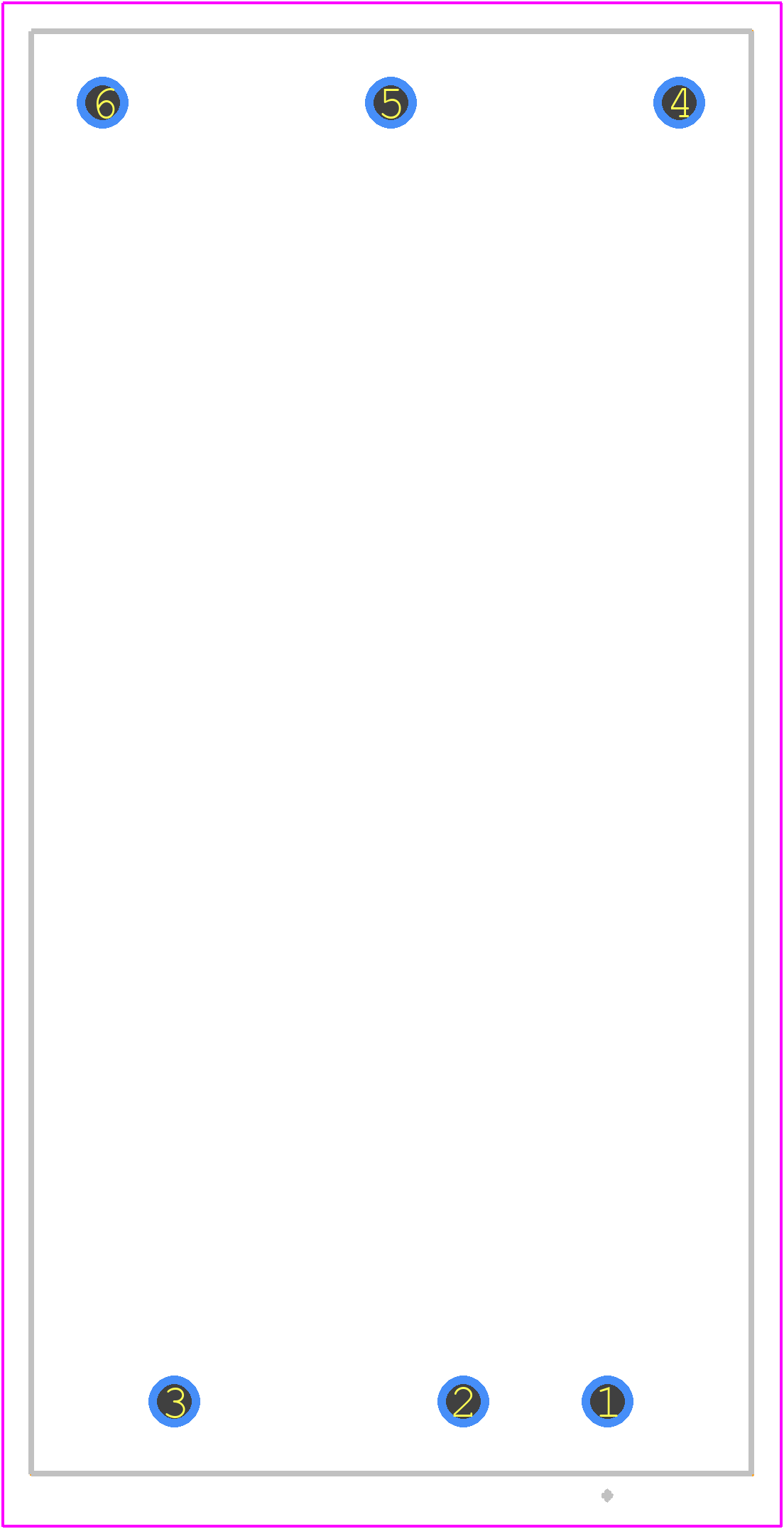

RSDW60F-12 - Mean Well PCB footprint - Other - Other - RSDW60F-12-1
click to zoom
3D Models
RSDW60F-12 - Mean Well - 3D model - Other - RSDW60F-12-1
click to zoom

RSDW60F-12 Details

  • Manufacturer Part Number:

    RSDW60F-12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PPACKAGE-6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    Mean Well

  • YTEOL:

    7

RSDW60F-12 Frequently Asked Questions (FAQs)

  • The maximum ambient temperature for the RSDW60F-12 is 50°C (122°F) with derating, and 40°C (104°F) without derating.
  • Yes, the RSDW60F-12 is designed to operate in humid environments, but it's recommended to take precautions to prevent moisture ingress, such as conformal coating or potting.
  • The RSDW60F-12 requires a minimum load of 10% of the maximum rated output current to maintain stability and regulation.
  • Yes, you can parallel multiple RSDW60F-12 units, but it's recommended to use a master-slave configuration and ensure proper synchronization and current sharing.
  • The MTBF of the RSDW60F-12 is approximately 550,000 hours at 25°C (77°F) ambient temperature, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

RSDW60F-12 Overview

Use the download button to access the RSDW60F-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RSDW6, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
