RSDW60G-15 - Mean Well

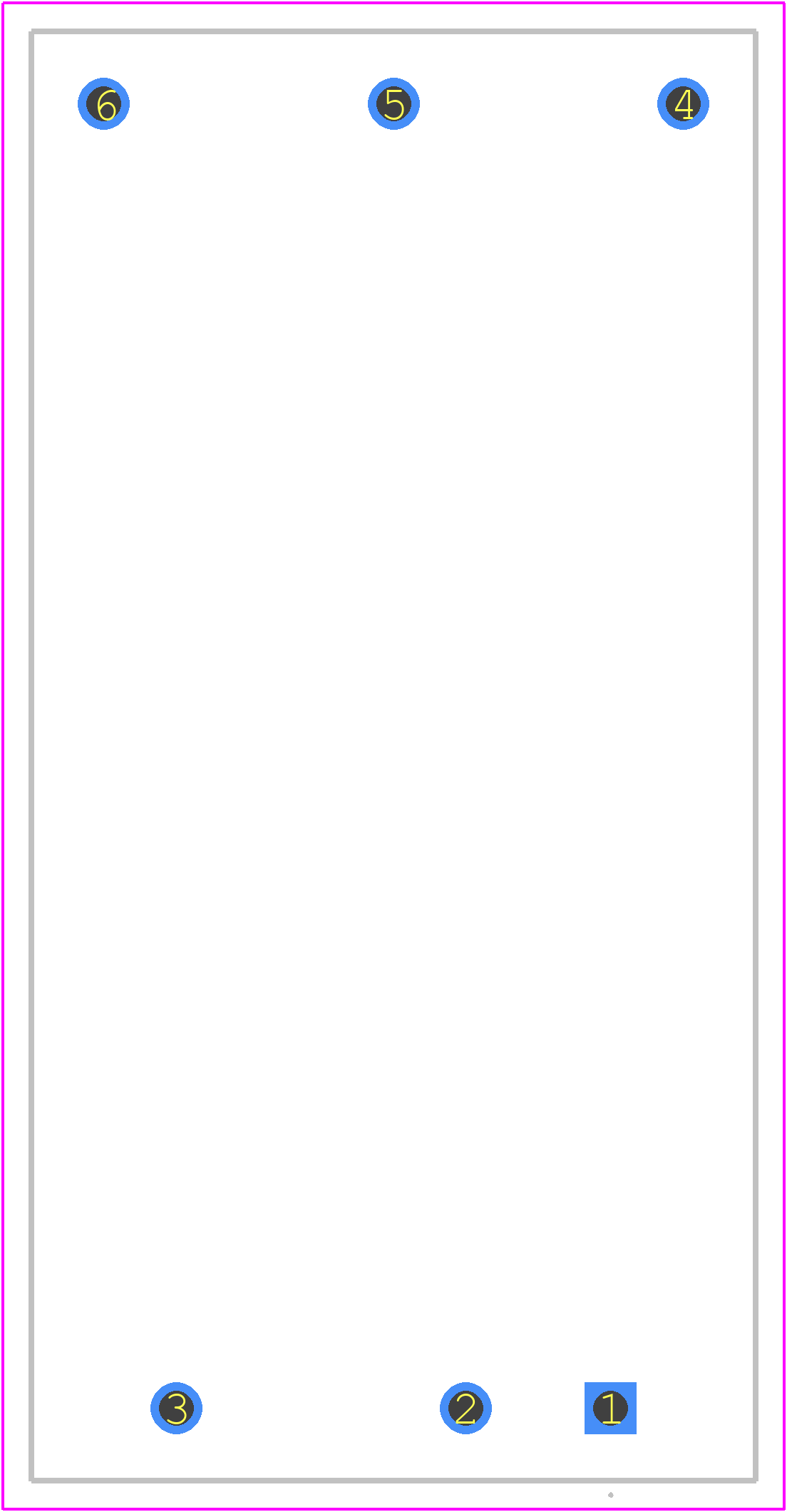

RSDW60G-15 Details

• Manufacturer Part Number:

  RSDW60G-15

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PPACKAGE-6

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EAC, EN, IEC, UKCA

• Efficiency (Main Output):

  92%

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  R-MDMA-T6

• Length:

  50.8 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  4 A

• Output Voltage-Max:

  16.5 V

• Output Voltage-Min:

  13.5 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  METAL

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,6LEAD,1.8

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OUTPUT OVER VOLTAGE; OUTPUT OVER LOAD; SHORT CIRCUIT; THERMAL

• Ripple Voltage (Main Out):

  0.053025 Vrms

• Seated Height-Max:

  10.85 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  DUAL

• Total Power Output-Max:

  60 W

• Trim/Adjustable Output:

  YES

• Width:

  25.4 mm
