The maximum ambient temperature for the RSDW60G-24 is 50°C (122°F) with derating, and 40°C (104°F) without derating.
Yes, the RSDW60G-24 is designed to operate in humid environments, but it's recommended to take precautions to prevent moisture ingress, such as conformal coating or potting.
The MTBF of the RSDW60G-24 is approximately 550,000 hours at 25°C (77°F) ambient temperature, calculated according to MIL-HDBK-217F.
Yes, the RSDW60G-24 is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 20G (11ms), making it suitable for use in industrial and transportation applications.
Mean Well recommends a minimum spacing of 5mm between the RSDW60G-24 and other components, and a minimum clearance of 2mm between the RSDW60G-24 and the PCB edge.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RSDW60G-24 Overview

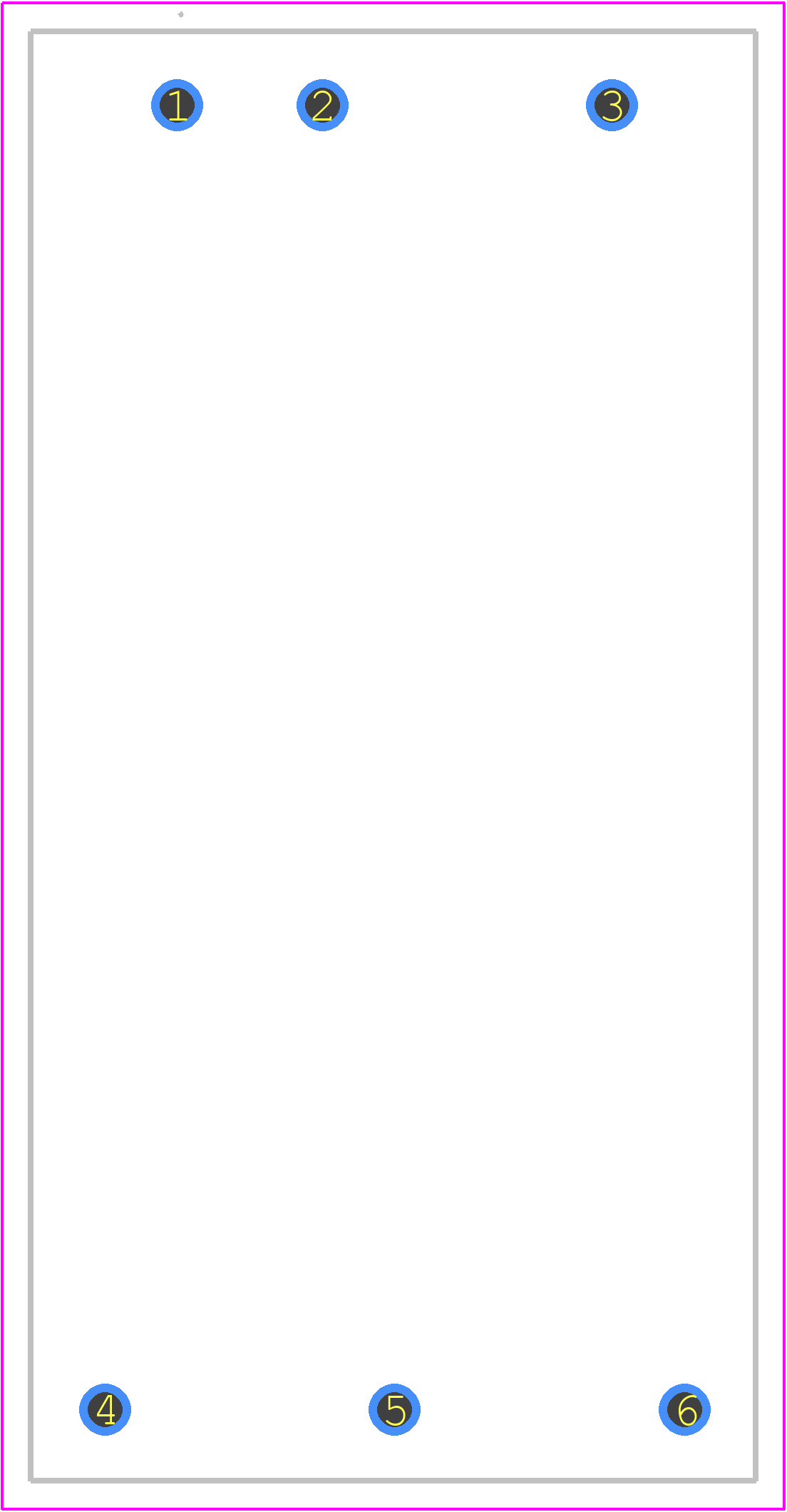

Use the download button to access the RSDW60G-24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RSDW6,
or try a keyword search, such as Power Supply Modules
About Mean Well
MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
