RSE-32.768-12.5-C - RALTRON

Description: CRYSTAL, 32.768KHZ, 12.5PF, 8.7 X 3.7MM

Download RSE-32.768-12.5-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

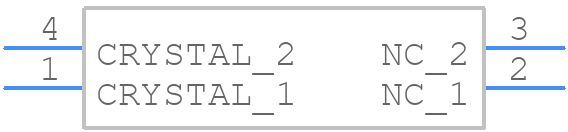

RSE-32.768-12.5-C - RALTRON - PCB symbol
click to zoom
PCB Footprints

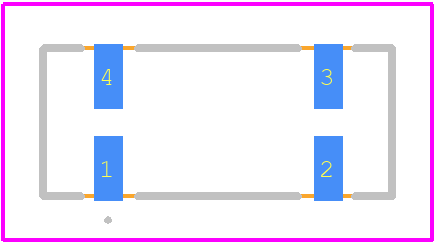

RSE-32.768-12.5-C - RALTRON PCB footprint - Other - Other - RSE-32.768-12.5-C-1
click to zoom
3D Models
RSE-32.768-12.5-C - RALTRON - 3D model - Other - RSE-32.768-12.5-C-1
click to zoom

RSE-32.768-12.5-C Details

  • Manufacturer Part Number:

    RSE-32.768-12.5-C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.60.00.10

  • Manufacturer:

    Raltron Electronics Corporation

  • YTEOL:

    6.7

  • Aging:

    5 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    1 µW

  • Frequency Stability:

    0.0126%

  • Frequency Tolerance (MHz):

    20

  • Load Capacitance:

    12.5 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    0.032768 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    L8.7XB3.7XH2.5 (mm)/L0.343XB0.146XH0.098 (inch)

  • Series Resistance:

    50000 Ω

  • Surface Mount:

    YES
