RSH2-3.305S/H2 footprint, schematic symbol and 3D model by RECOM Power

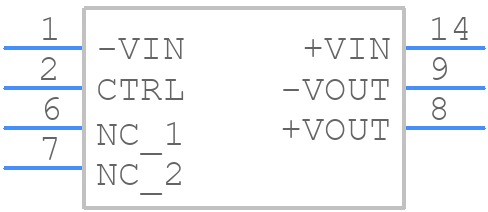

Symbol

click to zoom

PCB Footprints

RSH2-3.305S/H2 - RECOM Power PCB footprint - Other - Other - 18.9mm x 12.8mm x 9.2mm _2021

click to zoom

3D Models

RSH2-3.305S/H2 - RECOM Power - 3D model - Other - 18.9mm x 12.8mm x 9.2mm _2021

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RSH2-3.305S/H2
Part Number RSH2-3.305S/H2
Manufacturer RECOM Power
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - 18.9mm x 12.8mm x 9.2mm _2021
Released Date Nov 30, 2021
Last Modified Date Sep 27, 2024 6:28 AM UTC
Pinout / Pin List Click Here (Member Only)

RSH2-3.305S/H2 Details

Manufacturer Part Number:
RSH2-3.305S/H2
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-7
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
5
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CAN, CSA, UL
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
78%
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.8 V
Input Voltage-Nom:
3.3 V
JESD-30 Code:
R-PDMA-G7
Length:
18.9 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.4 A
Output Voltage-Max:
5.05 V
Output Voltage-Min:
4.95 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER CURRENT; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.017675 Vrms
Seated Height-Max:
9.2 mm
Surface Mount:
YES
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
2 W
Trim/Adjustable Output:
NO
Width:
12.8 mm

RSH2-3.305S/H2 Frequently Asked Questions (FAQs)

RECOM recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The RSH2-3.305S/H2 is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure your application meets the required safety certifications by following the recommended layout, component selection, and testing guidelines.
The maximum allowable capacitance for the input filter is 10uF, and for the output filter is 22uF. Exceeding these values may affect the converter's stability and performance.
Use an oscilloscope to monitor the input and output voltages, and check the converter's temperature using a thermocouple. Consult the datasheet and application notes for troubleshooting guidelines and fault detection methods.
Yes, the RSH2-3.305S/H2 is designed for high-reliability applications. However, ensure you follow the recommended derating guidelines, and consider redundant configurations or N+1 architectures for high-availability applications.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RSH2-3.305S/H2 Overview

Use the download button to access the RSH2-3.305S/H2 schematic symbol, PCB footprint, and 3D model.
