RSM850-6112-85-1012 - Relpol

Description: Signal relays RSM850-6112-85-1012, 2 CO. Contact material: AgPd/Au flash gold plating. Voltage coil 12 V DC. Rated load AC1 0,5 A / 125 V AC. Mounting: for PCB. Cover protection category IP 67.

Download RSM850-6112-85-1012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

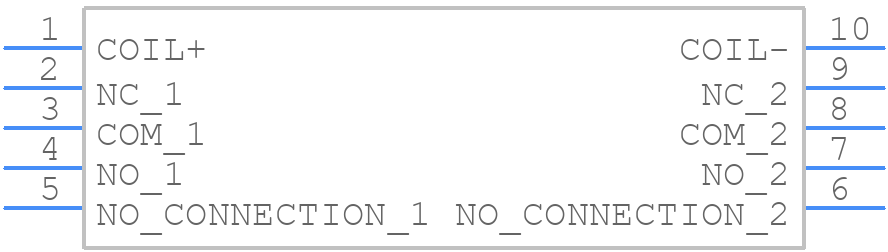

RSM850-6112-85-1012 - Relpol - PCB symbol
click to zoom
PCB Footprints

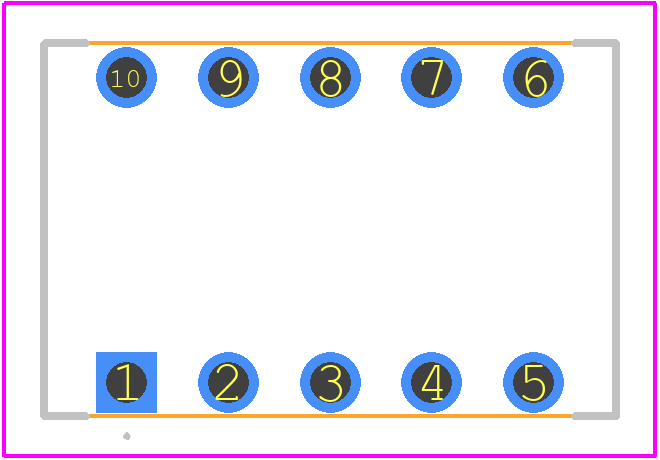

RSM850-6112-85-1012 - Relpol PCB footprint - Other - Other - RSM850-6112-85-1012-2
click to zoom
3D Models
RSM850-6112-85-1012 - Relpol - 3D model - Other - RSM850-6112-85-1012-2
click to zoom

RSM850-6112-85-1012 Details

  • Manufacturer Part Number:

    RSM850-6112-85-1012

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Relpol SA

  • YTEOL:

    7

  • Relay Type:

    POWER/SIGNAL RELAY

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RSM850-6112-85-1012 Overview

Use the download button to access the RSM850-6112-85-1012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RSM85, or try a keyword search, such as Power/Signal Relays
