RSN112010 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

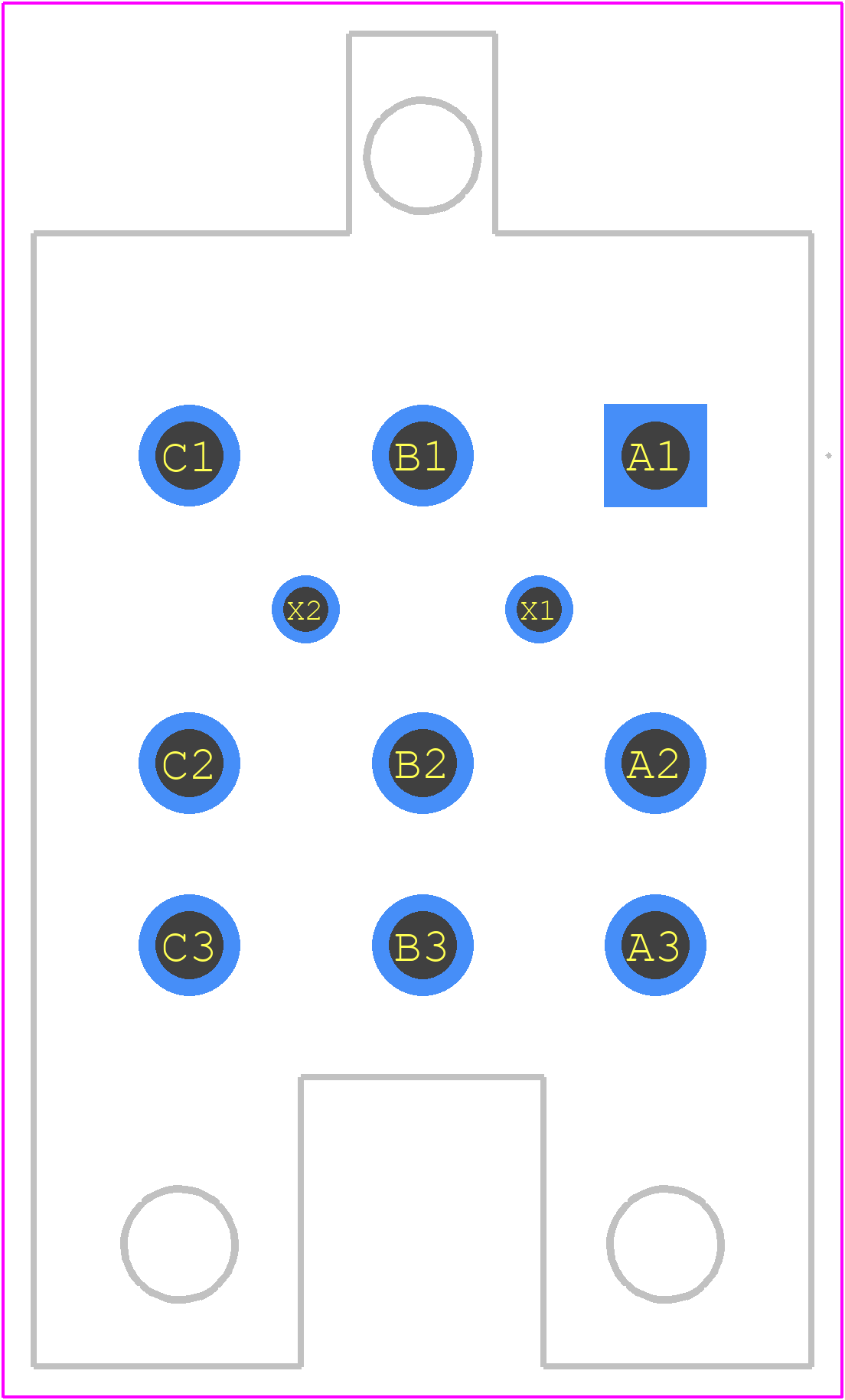

RSN112010 - Amphenol PCB footprint - Other - Other - RSN112010-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RSN112010
Part Number RSN112010
Manufacturer Amphenol
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - RSN112010-4
Released Date Jan 27, 2024
Last Modified Date Jan 29, 2024 2:14 PM UTC
Pinout / Pin List Click Here (Member Only)

RSN112010 Details

Manufacturer Part Number:
RSN112010
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
20 Weeks
Manufacturer:
Amphenol Corporation
Contact Finish Mating:
GOLD
Contact Finish Termination:
GOLD
Device Socket Type:
RELAY SOCKET
Housing Material:
POLYETHERIMIDE
JESD-609 Code:
e4
Number of Contacts:
11

RSN112010 Frequently Asked Questions (FAQs)

The recommended torque value for the RSN112010 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 1.5-3.5 Nm (13.3-25.8 in-lbs) for the nut locks.
Yes, the RSN112010 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G peak acceleration.
Yes, the RSN112010 connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity resistance of 95% RH at 40°C.
The RSN112010 connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
The RSN112010 connector is designed to be compatible with other connectors that meet the MIL-DTL-55302F specification, but compatibility with specific connectors from other manufacturers should be verified.

Trust Checks

Community Provided

System Verified

Community Approved

RSN112010 Overview

Use the download button to access the RSN112010 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RSN11, or try a keyword search, such as Sockets and Chip Carriers

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
