RSS070N05HZGTB - ROHM Semiconductor

RSS070N05HZGTB Details

• Manufacturer Part Number:

  RSS070N05HZGTB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Date Of Intro:

  2019-09-09

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  5

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  45 V

• Drain Current-Max (ID):

  7 A

• Drain-source On Resistance-Max:

  0.035 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  125 pF

• JESD-30 Code:

  R-PDSO-G8

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

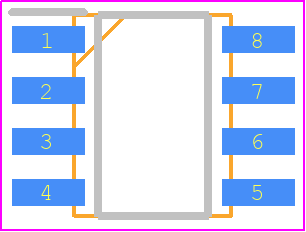

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  2 W

• Pulsed Drain Current-Max (IDM):

  28 A

• Reference Standard:

  AEC-Q101

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
