ROHM provides a recommended PCB layout in their application note AN11984, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The RSS130N03HZGTB requires a specific biasing scheme to operate within its recommended operating conditions. ROHM provides a recommended biasing circuit in their datasheet, which includes a voltage regulator and resistive dividers to set the gate-source voltage and drain-source voltage.
Operating the RSS130N03HZGTB beyond its recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. ROHM provides guidelines for derating the device's performance under extreme temperatures, voltage, and current conditions in their datasheet.
ROHM provides a troubleshooting guide in their application note AN11985, which includes steps for identifying and resolving common issues, such as overvoltage, overcurrent, and thermal-related problems.
The RSS130N03HZGTB is RoHS-compliant and meets various environmental and regulatory standards, including EU REACH and JIG-101. However, it is essential to ensure that the device is used in compliance with relevant regulations and standards in the target application and region.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RSS130N03HZGTB Overview

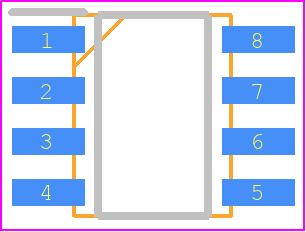

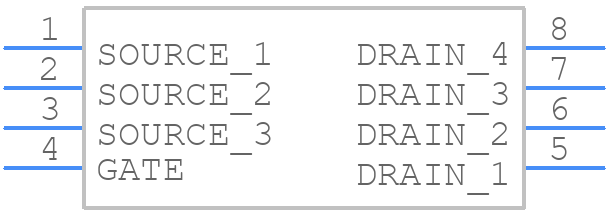

Use the download button to access the RSS130N03HZGTB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RSS13,
or try a keyword search, such as Power Field-Effect Transistors
