RSX501LAM20 - ROHM Semiconductor

RSX501LAM20 Details

• Manufacturer Part Number:

  RSX501LAM20

• Part Life Cycle Code:

  Active

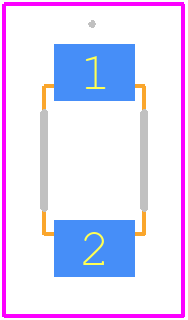

• Package Description:

  SOD-128, 2 PIN

• ECCN Code:

  EAR99

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  9

• Additional Feature:

  HIGH RELIABILITY

• Application:

  GENERAL PURPOSE

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.39 V

• JESD-30 Code:

  R-PDSO-F2

• Non-rep Pk Forward Current-Max:

  100 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  125 °C

• Output Current-Max:

  5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, EMBOSSED, 7 INCH

• Rep Pk Reverse Voltage-Max:

  25 V

• Reverse Current-Max:

  500 µA

• Reverse Test Voltage:

  20 V

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Form:

  FLAT

• Terminal Position:

  DUAL
