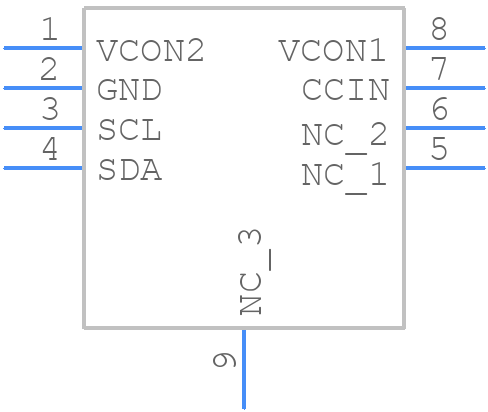

RT1731GQW - RICHTEK

RT1731GQW Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the RT1731GQW to ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The input and output capacitors should be placed close to the IC, and the feedback resistors should be placed close to the output pin.
• How do I ensure the RT1731GQW is stable and doesn't oscillate?
  To ensure stability, the output capacitor should be a low-ESR type, and the feedback resistors should be chosen to ensure a stable gain margin. Additionally, the PCB layout should be designed to minimize parasitic inductance and capacitance.
• What is the maximum input voltage that the RT1731GQW can handle?
  The maximum input voltage that the RT1731GQW can handle is 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation.
• How do I calculate the output voltage of the RT1731GQW?
  The output voltage of the RT1731GQW can be calculated using the formula: Vout = (1 + R2/R1) * Vin, where R2 and R1 are the feedback resistors, and Vin is the input voltage.
• What is the thermal shutdown temperature of the RT1731GQW?
  The thermal shutdown temperature of the RT1731GQW is typically around 150°C, but it can vary depending on the specific application and operating conditions.
