RT2402B7TR7 - CTS

Description: Resistor Networks & Arrays 1.00mm pitch 9bits 50 Ohms

Download RT2402B7TR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

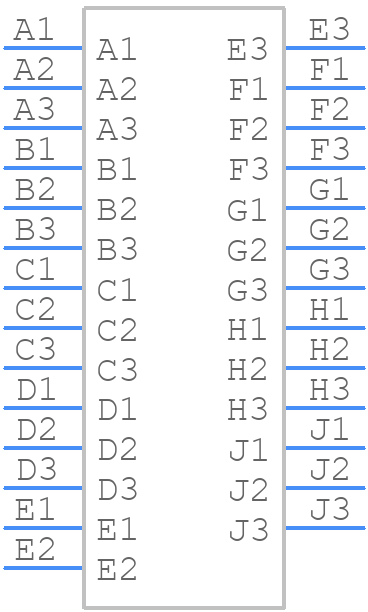

Symbol
RT2402B7TR7 - CTS - PCB symbol
click to zoom
PCB Footprints
RT2402B7TR7 - CTS PCB footprint - BGA - BGA - RT2402B7TR7
click to zoom
3D Models
RT2402B7TR7 - CTS - 3D model - BGA - RT2402B7TR7
click to zoom

RT2402B7TR7 Details

  • Manufacturer Part Number:

    RT2402B7TR7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    BGA, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    0

  • Construction:

    Chip

  • Element Power Dissipation:

    0.05 W

  • First Element Resistance:

    50 Ω

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    BUSSED

  • Number of Elements:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    27

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    1.19 mm

  • Package Length:

    9 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3 mm

  • Packing Method:

    TR, 7 INCH

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Resistance:

    50 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    1235

  • Surface Mount:

    YES

  • Temperature Coefficient:

    200 ppm/°C

  • Terminal Finish:

    Bright Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    BALL

  • Tolerance:

    1%

RT2402B7TR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • The RT2402B7TR7 requires a bias voltage of 2.5V to 5.5V. Ensure the bias voltage is stable and within the recommended range. A decoupling capacitor of 10nF to 100nF is recommended to filter out noise.
  • The maximum power dissipation of the RT2402B7TR7 is 1.5W. Ensure the device is mounted on a suitable heat sink to prevent overheating.
  • Handle the RT2402B7TR7 with an anti-static wrist strap or mat. Ensure the PCB is designed with ESD protection in mind, such as using TVS diodes or ESD protection devices.
  • The recommended operating temperature range for the RT2402B7TR7 is -40°C to 125°C. Ensure the device is operated within this range to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT2402B7TR7 Overview

Use the download button to access the RT2402B7TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT240, or try a keyword search, such as Array/Network Resistors
