RT2515HGSP - RICHTEK

Description: 2A 400mV@(2A) Adjustable 0.9V~5.5V Positive 1 6V SOP-8EP_150mil Linear Voltage Regulators (LDO) ROHS

Download RT2515HGSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

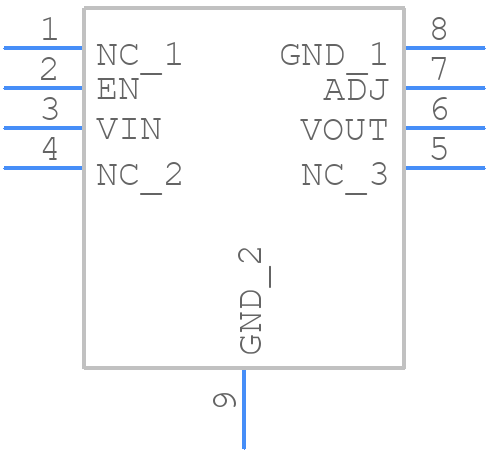

Symbol
RT2515HGSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT2515HGSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package
click to zoom
3D Models
RT2515HGSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package
click to zoom

RT2515HGSP Details

  • Manufacturer Part Number:

    RT2515HGSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.24 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9025 mm

  • Line Regulation-Max (%/V):

    0.4

  • Load Regulation-Max(%):

    1.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.753 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.905 mm

RT2515HGSP Frequently Asked Questions (FAQs)

  • Richtek recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal dissipation. The device should be placed near a thermal pad or a heat sink to reduce junction temperature.
  • To ensure stable output voltage regulation, it's essential to decouple the input voltage with a capacitor (e.g., 10uF) and use a low-ESR output capacitor (e.g., 22uF). Additionally, the input voltage should be within the recommended range (4.5V to 18V) to maintain regulation.
  • The maximum output current capability of the RT2515HGSP is 1.5A. However, the output current should be derated based on the ambient temperature and the PCB's thermal design to prevent overheating.
  • To protect the RT2515HGSP from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if the voltage exceeds the recommended range.
  • Richtek recommends using a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF as the input capacitor. This helps to filter out noise and improve the regulator's stability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT2515HGSP Overview

Use the download button to access the RT2515HGSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT251, or try a keyword search, such as Linear Regulator ICs
