Richtek provides a recommended PCB layout in their application note ANI06, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
Richtek recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection should be based on the specific application's requirements, such as ripple current, voltage rating, and physical size. A good starting point is to use X5R or X7R ceramic capacitors.
The maximum junction temperature (Tj) for the RT2519GQV(2) is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable long-term operation.
The RT2519GQV(2) is a commercial-grade device, but Richtek offers automotive-grade and high-reliability versions of this regulator, such as the RT2519GQV(2)-H or RT2519GQV(2)-A, which meet specific industry standards and requirements.
To ensure stability, follow the recommended PCB layout, use the correct input and output capacitors, and add a small ceramic capacitor (e.g., 10nF) between the VIN and EN pins. Additionally, ensure that the input voltage is within the specified range and the output is not overloaded.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT2519GQV(2) Overview

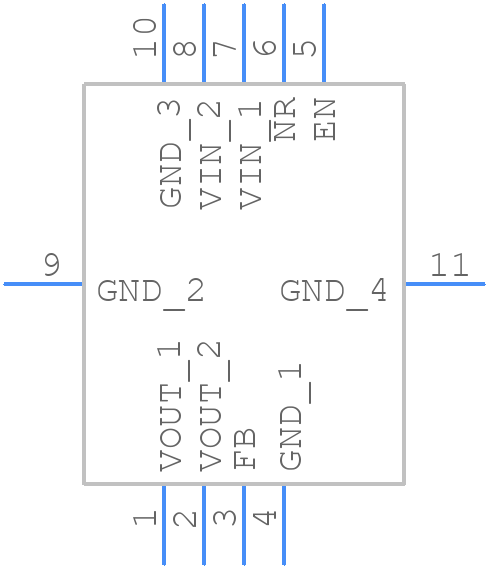

Use the download button to access the RT2519GQV(2) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT251,
or try a keyword search, such as Linear Regulator ICs
