RT314012 - TE Connectivity

RT314012 Details

• Manufacturer Part Number:

  RT314012

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Direct Group:

  RE01000300540002001000010003000100030000

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.50

• Factory Lead Time:

  13 Weeks, 5 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  7

• Body Breadth:

  12.7 mm

• Body Height:

  15.7 mm

• Body Length or Diameter:

  29 mm

• Coil Current(DC)-Max:

  0.033 A

• Coil Operate Voltage(DC):

  8.4 V

• Coil Power:

  400 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  360 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  4000VA@400VAC

• Contact (AC) Max Rating R Load:

  16A@400VAC

• Contact Current(AC)-Max:

  16 A

• Contact Current(DC)-Max:

  16 A

• Contact (DC) Max Rating R Load:

  16A@24VDC

• Contact Voltage(AC)-Max:

  400 V

• Contact Voltage(DC)-Max:

  24 V

• Contact/Output Supply Type:

  AC

• Dielectric Strength Between Coil and Contacts:

  5000 Vrms

• Dielectric Strength Between Open Contacts:

  1000 Vrms

• Electrical Life:

  6000 Cycle(s)

• End Contact Material:

  SILVER NICKEL

• Input Switching Control Type:

  Random

• Mounting Feature:

  PANEL MOUNT

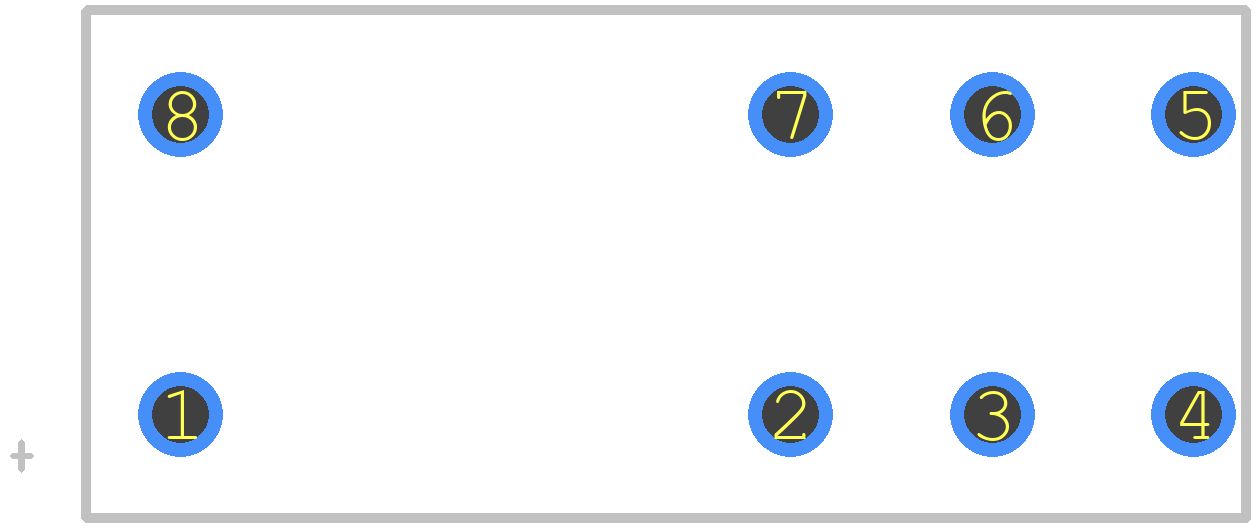

• Number of Terminals:

  8

• Operate Time:

  8 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  29mm x 12.7mm x 15.7mm

• Reference Standard:

  BEAB; CSA; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  6 ms

• Sealing:

  RT2

• Surface Mount:

  NO

• Terminal Length:

  0.003599187198374397 inch

• Termination Type:

  SOLDER/QUICK CONNECT

• Weight:

  14 g
