RT314F05 - TE Connectivity

Description: Body Features: Insulation Special Features Tracking Index of Relay Base PTI250 | Product Weight 14 G | Product Weight .494 OZ | Contact Features: Contact Number of Poles 1 | Contact Current Rating (Max) 16 AMP | Contact Arrangement 1 Form C (CO) | Contact Current Class 16 AMP | Contact Material AgNi90/10 | Dimensions: Width Class (Mechanical) 12 – 16 MM | Height Class (Mechanical) 15 – 16 MM | Insulation Clearance Between Contact & Coil 10 MM | Product Height 15.7 MM | Product Height .618 INCH | Product

Download RT314F05 Model

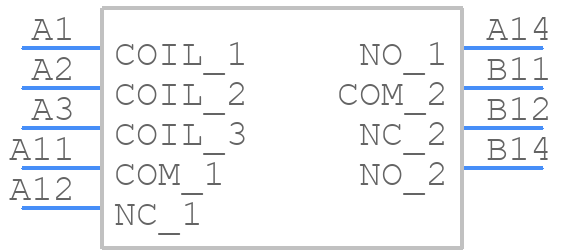

Schematic symbol is unavailable for download
PCB footprint is unavailable for download
3D model is unavailable for download
PCB Footprints

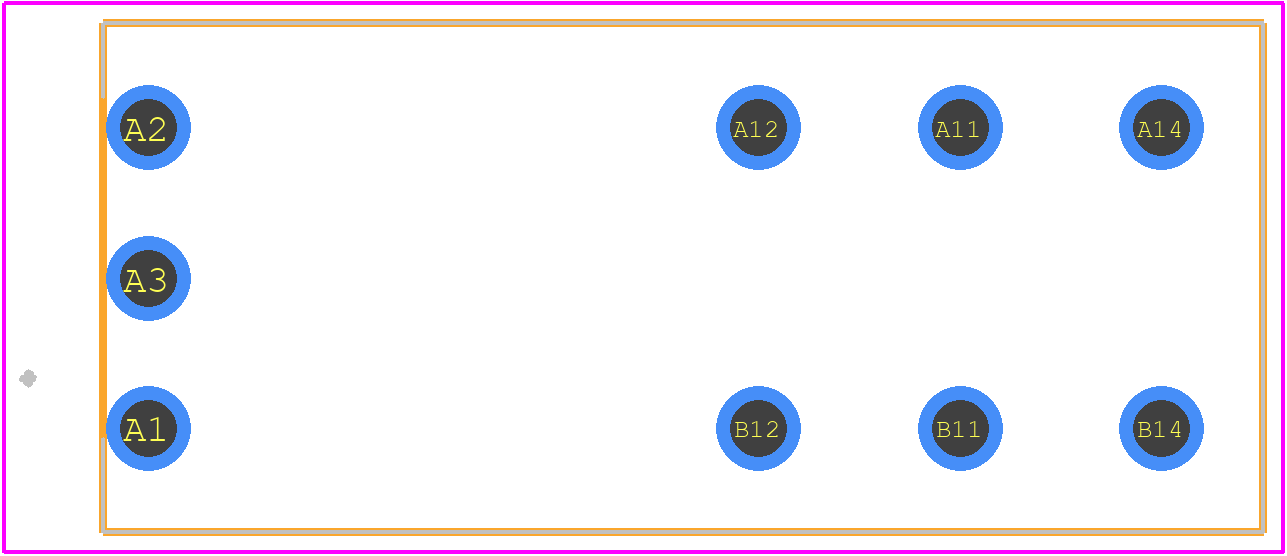

RT314F05 - TE Connectivity PCB footprint - Other - Other - RT314F05-3
click to zoom
3D Models
RT314F05 - TE Connectivity  - 3D model - Other - RT314F05-3
click to zoom

RT314F05 Details

  • Manufacturer Part Number:


  • Rohs Code:


  • Part Life Cycle Code:


  • Package Description:


  • Reach Compliance Code:


  • ECCN Code:


  • Factory Lead Time:

    63 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:


  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(DC)-Max:

    0.12 A

  • Coil Operate Voltage(DC):

    3.5 V

  • Coil Power:

    595 mW

  • Coil Release Voltage(DC):

    3.5 V

  • Coil Resistance:

    42 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil Voltage-Nom:

    5 V

  • Coil/Input Supply Type:


  • Contact (AC) Max Power Rating R Load:


  • Contact (AC) Max Rating R Load:


  • Contact Current(AC)-Max:

    16 A

  • Contact Current(DC)-Max:

    16 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:


  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • End Contact Material:


  • Input Switching Control Type:


  • Mounting Feature:


  • Number of Terminals:


  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:


  • Physical Dimension:

    29mm x 12.7mm x 15.7mm

  • Reference Standard:

    UL; VDE

  • Relay Action:


  • Relay Form:

    1 FORM C

  • Relay Function:


  • Relay Type:


  • Release Time:

    10 ms

  • Surface Mount:


  • Terminal Length:

    0.003599187198374397 inch

  • Termination Type:


  • Weight:

    14 g
