RT424A05 - TE Connectivity

Description: Body Features: Product Weight .459 OZ | Insulation Special Features Tracking Index of Relay Base PTI250 | Product Weight 13 G | Contact Features: Contact Number of Poles 2 | Contact Arrangement 2 Form C (CO) | Contact Current Rating (Max) 8 AMP | Contact Current Class 16 AMP | Contact Material AgNi90/10 | Dimensions: Insulation Clearance Between Contact & Coil 10 MM | Product Length 29 MM | Product Height .618 INCH | Product Length 1.14 INCH | Product Height 15.7 MM | Product Width .5 INCH | Product Width 1

Download RT424A05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

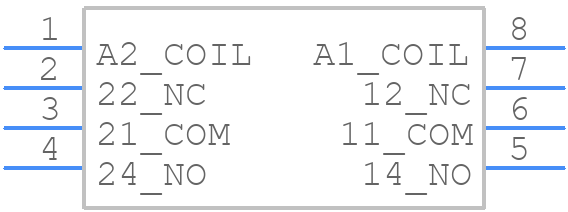

RT424A05 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

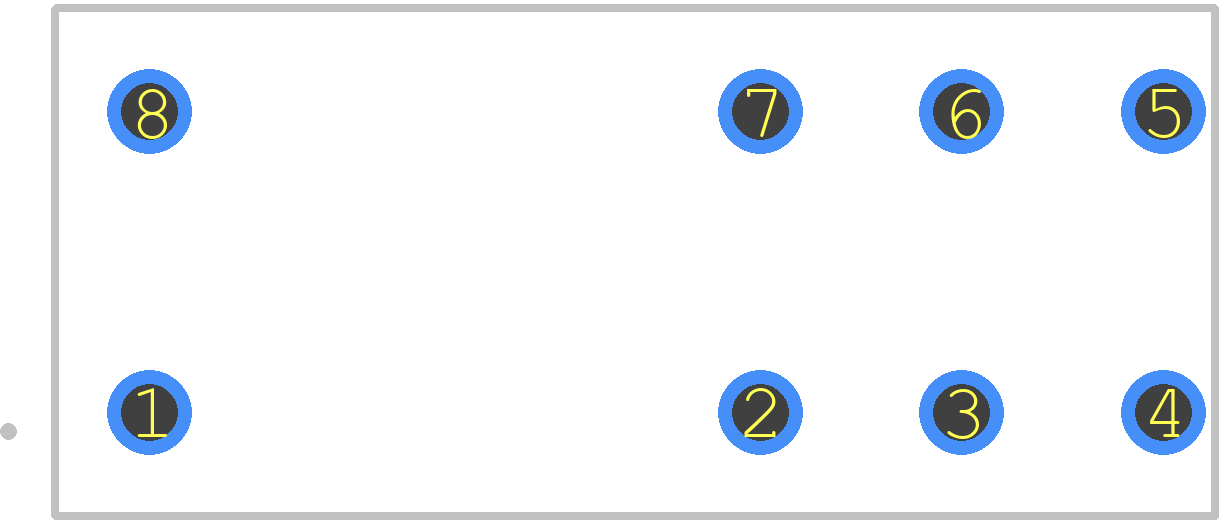

RT424A05 - TE Connectivity PCB footprint - Other - Other - RT42
click to zoom
3D Models
RT424A05 - TE Connectivity - 3D model - Other - RT42
click to zoom

RT424A05 Details

  • Manufacturer Part Number:

    RT424A05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.75

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(DC)-Max:

    0.08 A

  • Coil Operate Voltage(DC):

    3.5 V

  • Coil Power:

    403 mW

  • Coil Release Voltage(DC):

    3.5 V

  • Coil Resistance:

    62 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • End Contact Material:

    SILVER NICKEL

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29mm x 12.7mm x 15.7mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    LATCHED

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    13 g

RT424A05 Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow this layout to ensure proper thermal performance and to prevent overheating.
  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. It's also crucial to use a solder with a melting point below 260°C to prevent damage to the device.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 100°C for optimal performance.
  • Yes, the RT424A05 is designed to withstand high-vibration environments. However, it's essential to ensure the device is properly secured to the PCB and that the PCB is designed to withstand the vibration. TE Connectivity provides guidelines for vibration testing in their application note AN-1044.
  • The RT424A05 is an ESD-sensitive device. To prevent damage, it's essential to handle the device with ESD-protective equipment and follow proper ESD-handling procedures. TE Connectivity recommends using an ESD wrist strap or mat when handling the device.
