RT424F05 - TE Connectivity

Description: Body Features: Product Weight .459 OZ | Product Weight 13 G | Insulation Special Features Tracking Index of Relay Base PTI250 | Contact Features: Contact Current Rating (Max) 8 AMP | Contact Number of Poles 2 | Contact Current Class 16 AMP | Contact Material AgNi90/10 | Contact Arrangement 2 Form C (CO) | Dimensions: Insulation Clearance Between Contact & Coil .394 INCH | Insulation Clearance Class 8 MM | Product Length 1.14 INCH | Product Height .618 INCH | Length Class (Mechanical) 25 – 30 MM | Insulati

Download RT424F05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

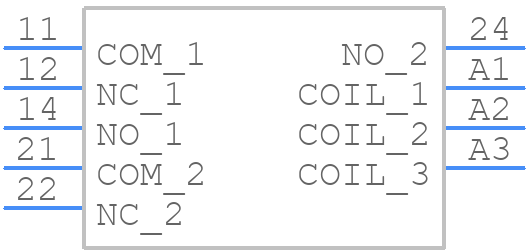

RT424F05 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

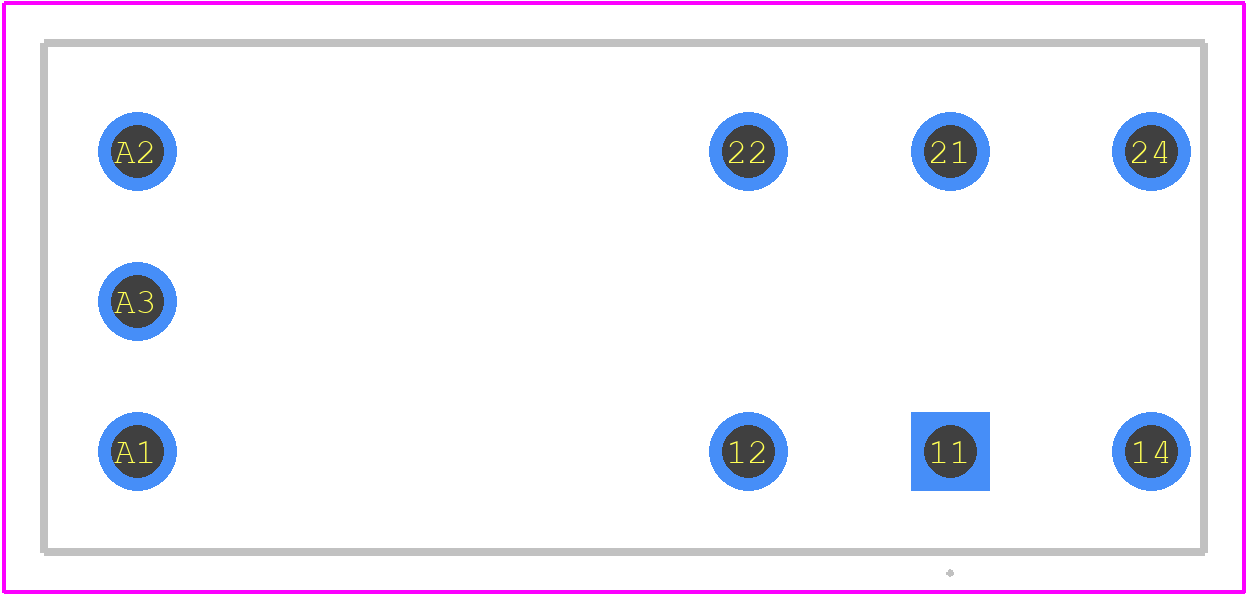

RT424F05 - TE Connectivity PCB footprint - Other - Other - RT424F05-1
click to zoom
3D Models
RT424F05 - TE Connectivity - 3D model - Other - RT424F05-1
click to zoom

RT424F05 Details

  • Manufacturer Part Number:

    RT424F05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.8

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(DC)-Max:

    0.12 A

  • Coil Operate Voltage(DC):

    3.5 V

  • Coil Power:

    595 mW

  • Coil Release Voltage(DC):

    3.5 V

  • Coil Resistance:

    42 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • End Contact Material:

    SILVER NICKEL

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29mm x 12.7mm x 15.7mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    LATCHED

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    13 g

RT424F05 Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow this layout to ensure proper thermal performance and to prevent overheating.
  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. It's also crucial to use a solder with a melting point below 220°C to prevent damage to the component.
  • While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the device's performance and reliability may degrade above 125°C. It's recommended to design the system to operate within a temperature range of -40°C to 125°C for optimal performance.
  • Yes, the RT424F05 is designed to withstand high-vibration environments. However, it's essential to ensure the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method to prevent damage or detachment during vibration.
  • To prevent damage, store the RT424F05 in its original packaging or a similar protective package. Avoid exposing the component to extreme temperatures, humidity, or physical stress during storage and shipping.
