Richtek provides a recommended PCB layout in their application note ANI-23, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current. Richtek recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the maximum input voltage. Refer to the application note ANI-24 for more details.
The maximum junction temperature (Tj) for the RT5753ALGQWA is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable long-term operation.
Yes, the RT5753ALGQWA is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to operate in harsh environments. However, additional testing and validation may be required for specific applications.
Richtek provides a troubleshooting guide in their application note ANI-25, which covers common issues, symptoms, and solutions. Additionally, engineers can consult the datasheet, application notes, and Richtek's technical support team for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT5753ALGQWA Overview

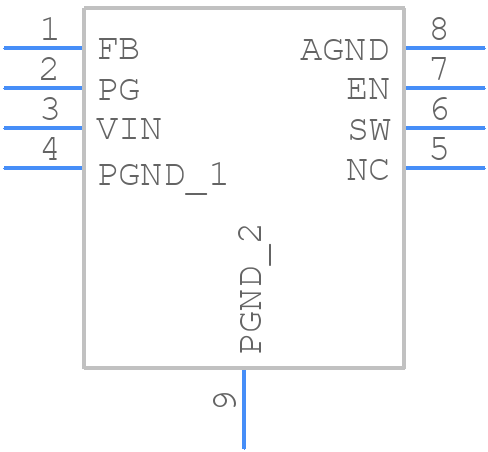

Use the download button to access the RT5753ALGQWA schematic symbol, PCB footprint, and 3D model.
