RT5795AGQW - RICHTEK

Description: Buck Switching Regulator IC Positive Adjustable 0.45V 1 Output 2A 8-WFDFN Exposed Pad , 2.7 MHz , -40°C ~ 85°C (TA)

Download RT5795AGQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

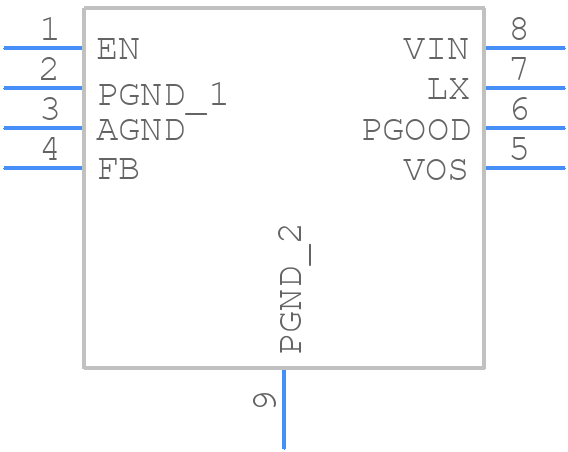

RT5795AGQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT5795AGQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN-8SL 2x2
click to zoom
3D Models
RT5795AGQW - RICHTEK - 3D model - Small Outline No-lead - WDFN-8SL 2x2
click to zoom

RT5795AGQW Details

  • Manufacturer Part Number:

    RT5795AGQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN2x2-8S

  • Package Description:

    WDFN-8

  • Manufacturer Package Code:

    WDFN2x2-8S

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2700 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2 mm

RT5795AGQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT5795AGQW's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • Use a high-quality output capacitor with low ESR and a minimum capacitance of 10uF. Also, ensure the input voltage is stable and within the recommended range, and the output voltage is set correctly using the FB pin.
  • The RT5795AGQW can handle input voltages up to 25V, but it's recommended to operate within the recommended input voltage range of 6.5V to 18V for optimal performance and reliability.
  • Implement overcurrent protection using an external current sense resistor and a comparator or a dedicated overcurrent protection IC. Also, ensure proper thermal design and heat sinking to prevent overheating.
  • The RT5795AGQW is rated for operation up to 85°C, but its performance and reliability may degrade at higher temperatures. If operation above 85°C is required, consider using a heat sink or a thermally-enhanced package.
