- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RT6150B-33GQW
- Part Number RT6150B-33GQW
- Manufacturer RICHTEK
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - W-Type 10L DFN 2.5x2.5 Package
- Released Date Jun 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RT6150B-33GQW Details
-
Manufacturer Part Number:
RT6150B-33GQW
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
WDFN2.5x2.5-10
-
Manufacturer Package Code:
WDFN2.5x2.5-10
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Richtek Technology Corp
-
Analog IC - Other Type:
SWITCHING REGULATOR
-
Peak Reflow Temperature (Cel):
NOT SPECIFIED
RT6150B-33GQW Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short and wide traces for the power lines.
-
To ensure stability, use a minimum output capacitance of 10uF, and ensure that the ESR (Equivalent Series Resistance) of the capacitor is less than 1 ohm. Also, keep the feedback resistors close to the IC and use a low-ESR capacitor for the output filter.
-
The maximum input voltage that the RT6150B-33GQW can handle is 18V. Exceeding this voltage may damage the IC.
-
The output voltage can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (1.25V), R1 is the feedback resistor, and R2 is the divider resistor.
-
The thermal shutdown temperature of the RT6150B-33GQW is 150°C. The IC will shut down when the junction temperature exceeds this value.
Trust Checks
Community Provided
System Verified
Community Approved
RT6150B-33GQW Overview

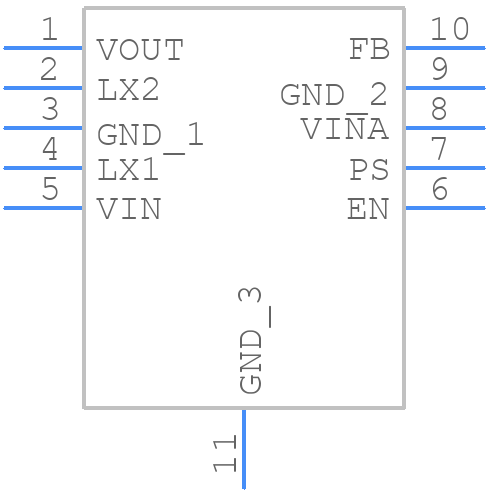

Use the download button to access the RT6150B-33GQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT615,
or try a keyword search, such as Switching Regulator or Controllers
