RT6204GSP - RICHTEK

Description: Switching Voltage Regulators 500mA, 60V, 350kHz Synchronous Step-Down Converter

Download RT6204GSP Model

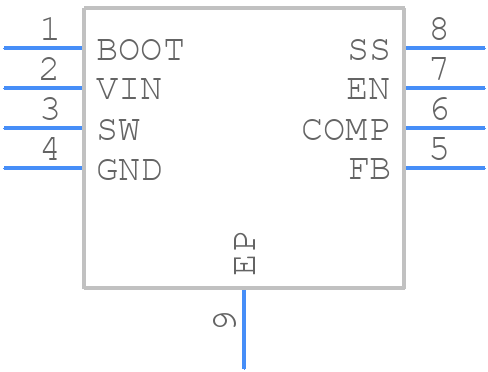

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT6204GSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8 (Exposed Pad)-2025
click to zoom
3D Models
RT6204GSP - RICHTEK  - 3D model - Small Outline Packages - SOP-8 (Exposed Pad)-2025
click to zoom

RT6204GSP Details

  • Manufacturer Part Number:

    RT6204GSP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Package Description:

    HSOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7.1

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    5.2 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9025 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    50 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.753 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    350 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.905 mm

RT6204GSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane and ensure good thermal conduction to the surrounding components.
  • Ensure that the output capacitor has a low ESR and is properly sized for the output voltage and current. Also, add a 10nF ceramic capacitor between the FB pin and GND to improve stability.
  • The maximum input voltage is 24V, but it's recommended to keep it below 20V to ensure reliable operation and minimize power dissipation.
  • Use the formula: Pd = (Vin - Vout) x Iout x Efficiency. Ensure that the calculated power dissipation is within the specified limits to prevent overheating.
  • A 10uF to 22uF ceramic or electrolytic capacitor with a voltage rating of 25V or higher is recommended. The capacitor should be placed close to the VIN pin to minimize noise and ripple.
