RT6215EHGJ8F - RICHTEK

Description: DC/DC CONV, SYNC BUCK, 500KHZ, TSOT-23-8; Topology:Synchronous Buck (Step Down); Input Voltage Min:4.5V; Input Voltage Max:24V; No. of Outputs:1Outputs; DC / DC Converter IC Case:TSOT-23; No. of Pins:8Pins; Output Current:2A; Output RoHS Compliant: Yes

Download RT6215EHGJ8F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

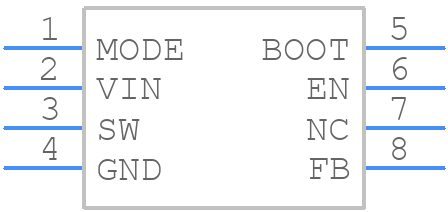

Symbol
RT6215EHGJ8F - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT6215EHGJ8F - RICHTEK PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TSOT-23-8
click to zoom
3D Models
RT6215EHGJ8F - RICHTEK - 3D model - SOT23 (8-Pin) - TSOT-23-8
click to zoom

RT6215EHGJ8F Details

  • Manufacturer Part Number:

    RT6215EHGJ8F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOT-28(FC)

  • Manufacturer Package Code:

    TSOT-28(FC)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Additional Feature:

    O/P VOLTAGE ADJUSTABLE FROM 0.791V TO 5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.8955 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    1.6 mm

RT6215EHGJ8F Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R). Also, ensure that the feedback network is properly designed and compensated.
  • The maximum allowable ripple current on the input capacitor is typically 1A to 2A, depending on the specific application and operating conditions. Exceeding this limit may reduce the lifespan of the capacitor.
  • While ceramic capacitors can be used, they may not be the best choice due to their limited capacitance and high ESR. X5R or X7R capacitors are recommended for their higher capacitance and lower ESR, ensuring better output voltage regulation.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range. Additionally, consider using a TVS diode or a zener diode to clamp overvoltage transients.
