RT6219BHGQW - RICHTEK

Description: IC REG BUCK ADJUSTABLE 4A 10WDFN

Download RT6219BHGQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

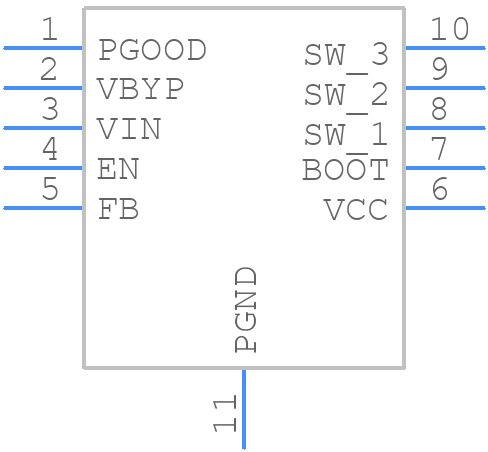

RT6219BHGQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT6219BHGQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn11
click to zoom
3D Models
RT6219BHGQW - RICHTEK - 3D model - Small Outline No-lead - dfn11
click to zoom

RT6219BHGQW Details

  • Manufacturer Part Number:

    RT6219BHGQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN3x3-10

  • Manufacturer Package Code:

    WDFN3x3-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7.7

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    550 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

RT6219BHGQW Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI-23, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The output capacitor selection depends on the output voltage, output current, and ripple requirements. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. The X5R or X7R dielectric type is recommended for its low temperature coefficient and high reliability.
  • Although the datasheet specifies a maximum input voltage of 18V, Richtek recommends limiting the input voltage to 15V to ensure reliable operation and prevent damage to the internal components.
  • The RT6219BHGQW has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. Richtek provides a calculation formula for the resistor value in their datasheet.
  • Richtek recommends using a ceramic capacitor with a value of 1uF to 10uF and a voltage rating of at least 1.5 times the input voltage. The X5R or X7R dielectric type is recommended for its low temperature coefficient and high reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT6219BHGQW Overview

Use the download button to access the RT6219BHGQW schematic symbol, PCB footprint, and 3D model.
