RT6266GSP - RICHTEK

Description: Switching Voltage Regulators 2.4A, 36V, 100kHz Asynchronous Step-Down Converter with Load Line Compensation

Download RT6266GSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

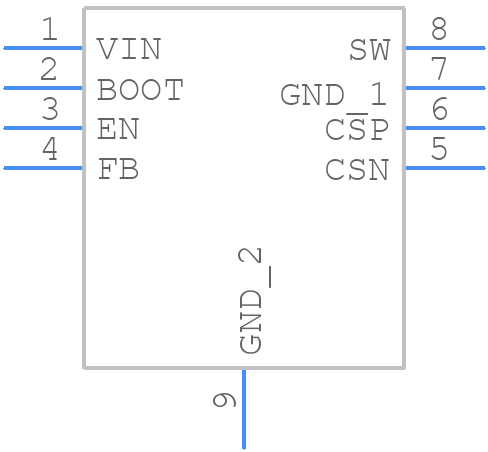

RT6266GSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT6266GSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package
click to zoom
3D Models
RT6266GSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package
click to zoom

RT6266GSP Details

  • Manufacturer Part Number:

    RT6266GSP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING REGULATOR

RT6266GSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane and ensure good thermal conduction to the surrounding components.
  • Ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R). Also, minimize the distance between the output capacitor and the RT6266GSP.
  • The maximum allowable ripple voltage is 10% of the input voltage. Exceeding this may affect the regulator's stability and output voltage regulation.
  • Yes, but ensure it is a high-quality, low-ESR ceramic capacitor (e.g., X5R or X7R) with a sufficient value (e.g., 10uF or higher) to maintain stability and regulate the output voltage.
  • Calculate the power dissipation using the formula: Pd = (Vin - Vout) x Iout. Ensure the calculated power dissipation is within the recommended maximum power dissipation of 3.5W.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT6266GSP Overview

Use the download button to access the RT6266GSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT626, or try a keyword search, such as Switching Regulator or Controllers
