Richtek provides a recommended PCB layout in their application note ANI-45, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current. Richtek recommends using a low-ESR capacitor with a value between 4.7uF to 10uF, and a voltage rating of at least 1.5 times the maximum input voltage.
The EN pin can withstand a maximum voltage of 6V, but it's recommended to keep it below 5.5V to ensure reliable operation and prevent damage to the IC.
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low ESR. Additionally, add a 1nF to 10nF capacitor between the VOUT and GND pins to improve stability and reduce noise.
The RT6308AGQUF can deliver up to 3A of output current, but it's recommended to derate the output current based on the ambient temperature and PCB thermal design to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

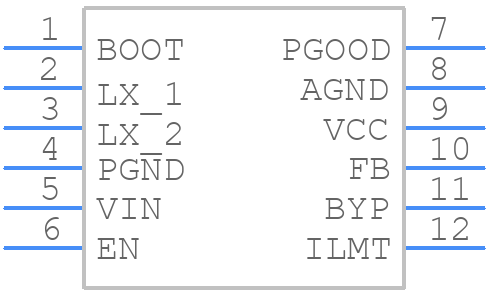

RT6308AGQUF Overview
Use the download button to access the RT6308AGQUF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT630,
or try a keyword search, such as Switching Regulator or Controllers
