Richtek provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Proper thermal design is crucial. Ensure good airflow around the IC, use a heat sink if necessary, and avoid blocking the thermal pads on the package. Also, follow the recommended operating temperature range of -40°C to 125°C to prevent overheating and ensure reliable operation.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the IC. Exceeding the maximum input voltage can lead to reduced performance, instability, or even damage to the device.
Start by verifying the PCB layout and component selection against the recommended design. Check for proper input and output capacitor selection, and ensure that the input voltage is within the specified range. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for troubleshooting guidelines.
While the RT6338BGQUF is a high-performance device, it's essential to consult with Richtek's sales team or a qualified representative to discuss the specific requirements of your application. They can provide guidance on the device's suitability, any necessary qualifications or certifications, and potential customization options.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT6338BGQUF Overview

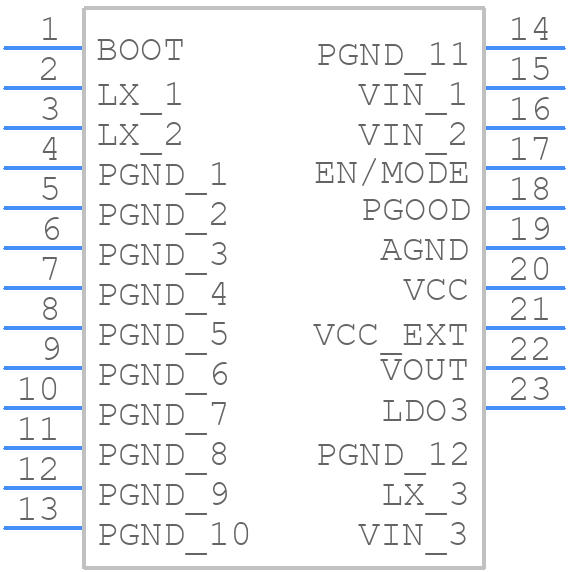

Use the download button to access the RT6338BGQUF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT633,
or try a keyword search, such as Switching Regulator or Controllers
