RT7240GSP - RICHTEK

Description: Buck Switching Regulator IC Positive Adjustable 0.765V 1 Output 5A 8-SOIC (0.154", 3.90mm Width) Exposed Pad

Download RT7240GSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

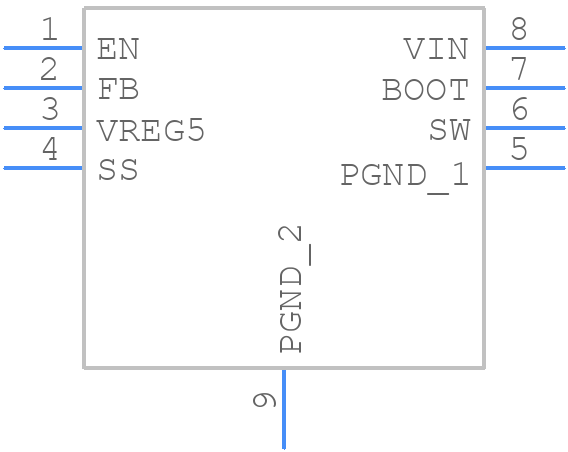

RT7240GSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT7240GSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad)_2026
click to zoom
3D Models
RT7240GSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad)_2026
click to zoom

RT7240GSP Details

  • Manufacturer Part Number:

    RT7240GSP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    CONSTANT ON TIME

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9025 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    8 V

  • Output Voltage-Min:

    0.765 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.753 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    760 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.905 mm

RT7240GSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The input and output capacitors should be placed close to the IC, and the feedback resistors should be placed close to the output pins.
  • To ensure stability, the output capacitor should be a low-ESR type, and the feedback resistors should be chosen to ensure a phase margin of at least 45 degrees. Additionally, the input and output capacitors should be decoupled from the power plane.
  • The RT7240GSP can handle input voltages up to 24V, but the maximum recommended input voltage is 18V to ensure reliable operation and to prevent overheating.
  • The output voltage of the RT7240GSP can be calculated using the formula: Vout = Vref x (1 + R2/R1), where Vref is the internal reference voltage (1.25V), R1 is the feedback resistor connected to the output, and R2 is the feedback resistor connected to the input.
  • The RT7240GSP can deliver up to 2A of output current, but the maximum recommended output current is 1.5A to ensure reliable operation and to prevent overheating.
