Part Image

RT7250BZSP - RICHTEK

Description: Switching Voltage Regulators 2A, 17V, 340/800kHz Synchronous Step-Down Converter

Download RT7250BZSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

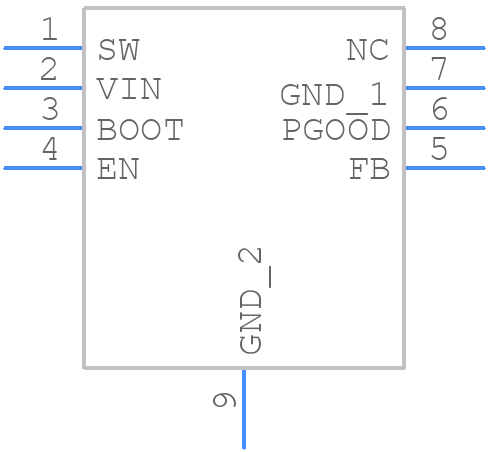

Symbol
RT7250BZSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT7250BZSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom
3D Models
RT7250BZSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad)
click to zoom

RT7250BZSP Details

  • Manufacturer Part Number:

    RT7250BZSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G8

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    900 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

RT7250BZSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT7250BZSP's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • Use a high-quality output capacitor with low ESR and a minimum capacitance of 10uF. Also, ensure the input voltage is stable and within the recommended range, and the output voltage is set correctly using the FB pin.
  • The RT7250BZSP can handle input voltages up to 24V, but it's recommended to keep the input voltage below 18V for optimal performance and reliability.
  • Use an external current sense resistor and a fuse or a PTC thermistor to protect the device from overcurrent. Also, ensure proper thermal design and heat sinking to prevent overheating.
  • The RT7250BZSP is rated for operation up to 85°C, but it's recommended to derate the output current and ensure proper heat sinking to prevent overheating in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT7250BZSP Overview

Use the download button to access the RT7250BZSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT725, or try a keyword search, such as Switching Regulator or Controllers
